Passenger Door Module C2 (Front Door) 16 Way

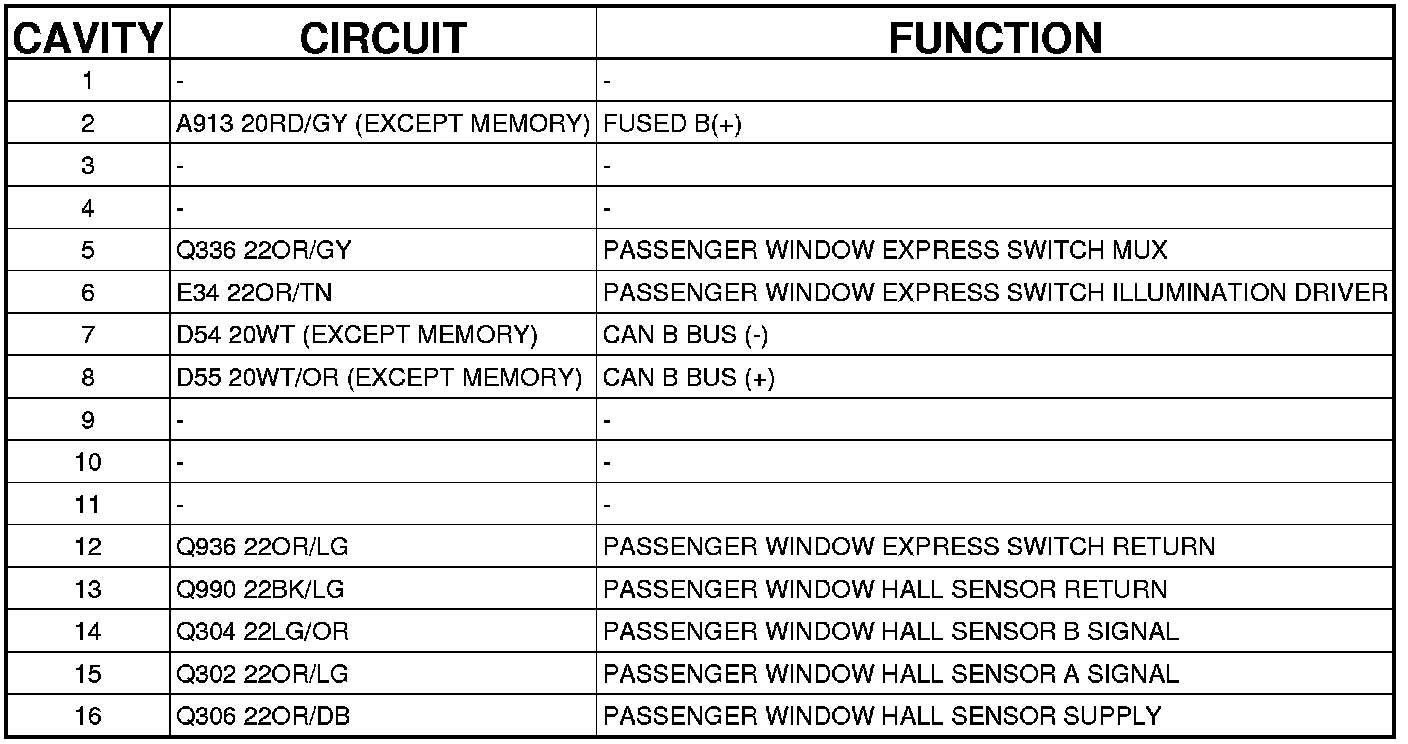

Connector C2 - (FRONT DOOR) 16 WAY




MODULE-DOOR-PASSENGER - (FRONT DOOR) 16 WAY
