Removal

6.1L

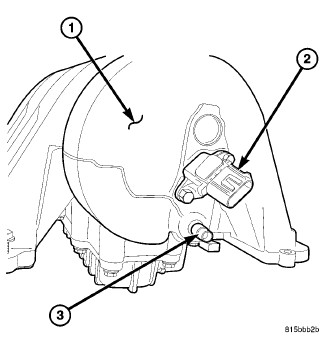

The Manifold Absolute Pressure (MAP) sensor (2) is located at the rear of the intake manifold (1).





1. Disconnect electrical connector at sensor.
2. Remove two sensor mounting bolts (3).
3. Check condition of sensor O-ring (2).
