Windows
>>
(Driver Door Module (DDM) - Electrical Diagnostics)
>>
DTC Troubleshooting
>>
B185A-Driver Window Position Sensor Circuit Performance
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

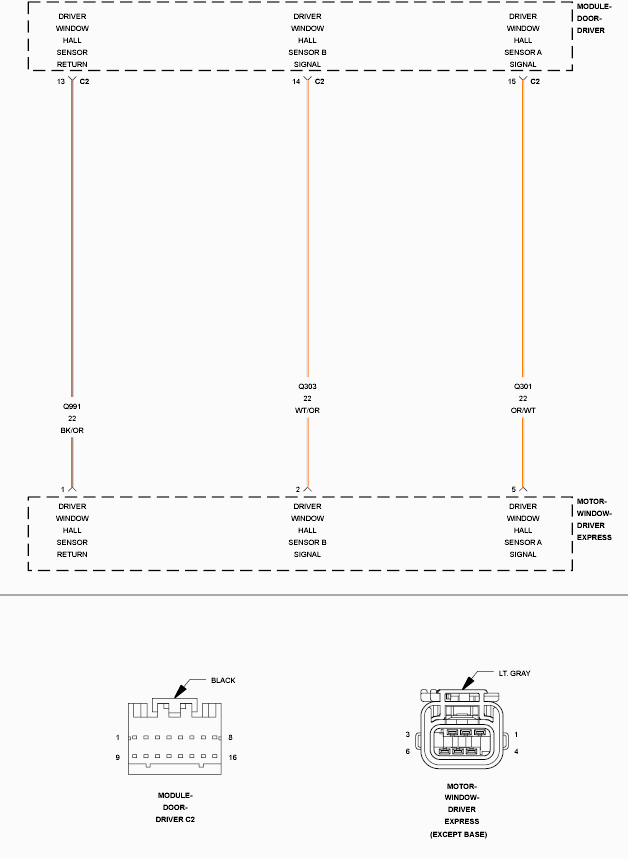

Fig 1: Driver Window Position Sensor Circuit Performance - Circuit Schematic
Courtesy of CHRYSLER LLC
