Intake Manifold

INTAKE MANIFOLD

Lower Intake Manifold

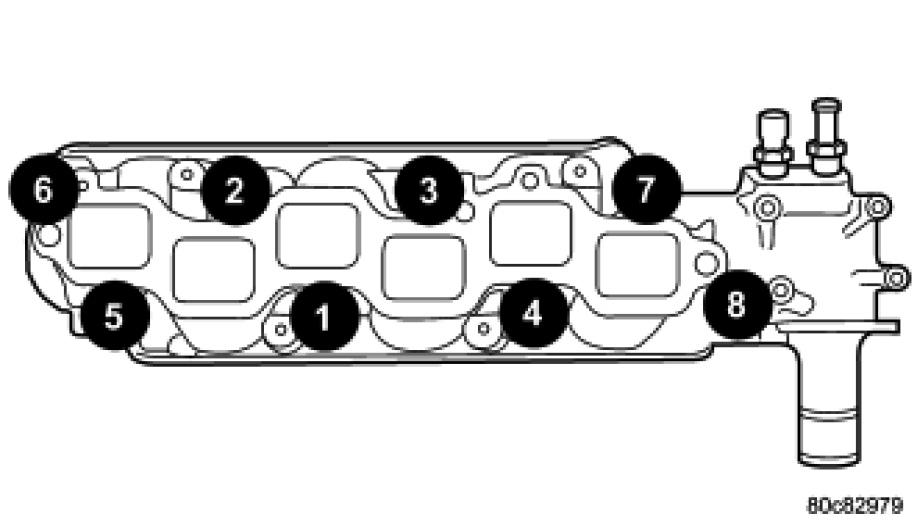

- Gradually tighten in sequence shown until a torque of 28 Nm (250 in. lbs.) is obtained.

Upper Intake Manifold

- Tighten bolts gradually starting in the center working outward until a torque of 12 Nm (105 in. lbs.) is obtained.

THROTTLE BODY





CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.

Tighten the three bolts and one stud in a mandatory torque criss - cross pattern sequence to 5.5 Nm (50 in. lbs.)
