Installation







INSTALLATION

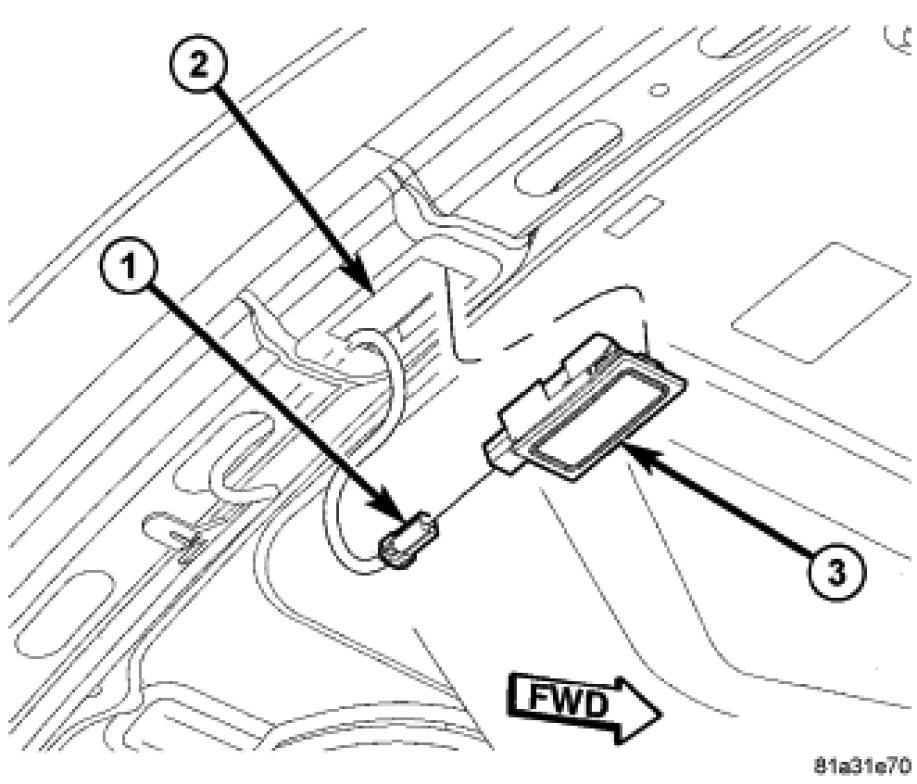

1. If replacing bulb, snap bulb socket into the lamp housing (3)
2. Connect the lamp unit (3) to the electrical connector (1).
3. Install housing (3) into rear shelf (2).
4. Connect battery negative cable.
