Description







DESCRIPTION

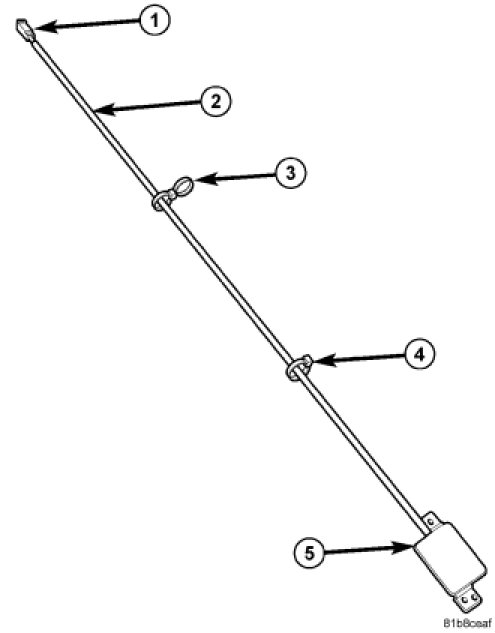

The Remote Start Antenna Module Assembly consists of an electrical connection to the WCM/SKREEM (1), a length of coaxial cable (2), two mounting clips (3) and (4), and a control module/antenna (5).
