Timing Cover

TIMING BELT COVER

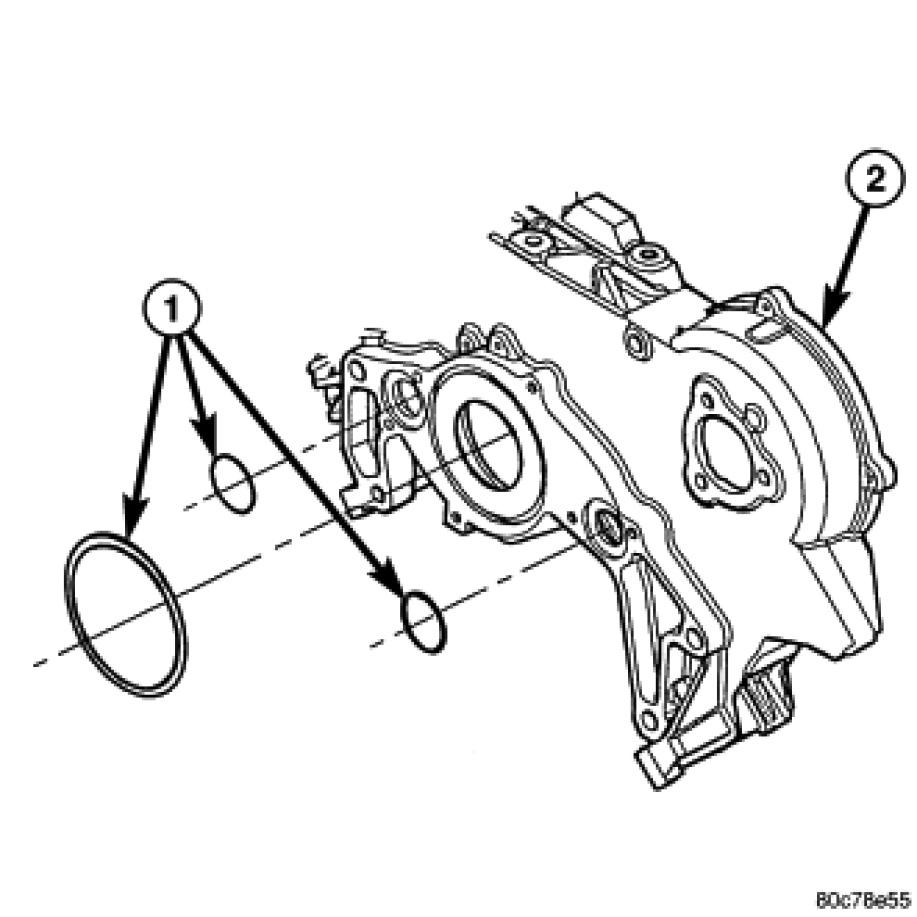

Install rear timing belt cover. Tighten bolts to the following specified torque:
- M10-54 Nm (40 ft. lbs.)
- M8-28 Nm (20 ft. lbs.)
- M6-12 Nm (105 in. lbs.)
