Installation







INSTALLATION

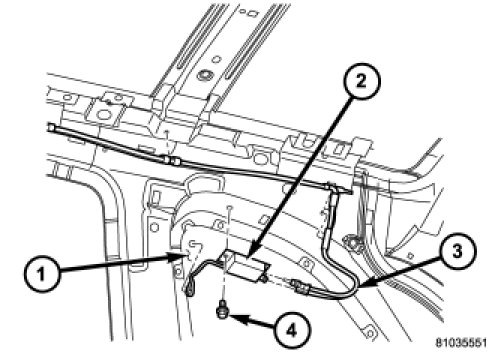

1. Install the antenna module and the mounting fastener. Tighten to 8.5 Nm (75 in. lbs.).
2. Connect the antenna connector to the quarter glass.
3. Connect the antenna lead and electrical connector to the antenna module.
4. Install the C-Pillar. C-Pillar Trim Panel-Installation.
5. Connect the battery negative cable.
