Camshaft Position Sensor - Removal

3.8L

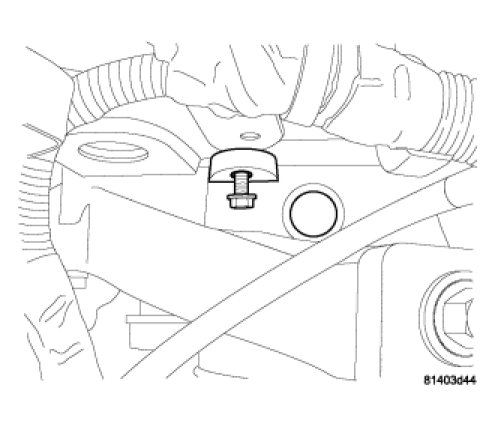

1. Disconnect and isolate negative battery cable at battery.
2. Disconnect electrical connectors to camshaft position (CMP) sensor.




3. Loosen CMP sensor mounting bolt.




4. Remove CMP sensor and leave mounting bolt in place.

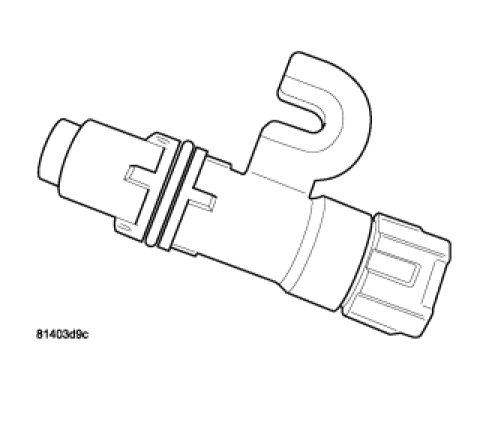

5. CMP sensor removed.
