Installation







INSTALLATION

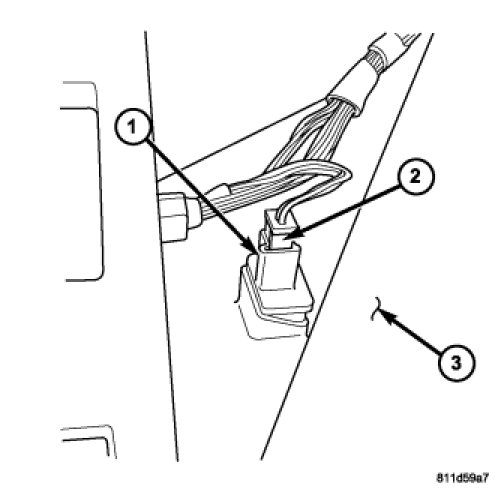

1. Install the evaporator temperature sensor (1) into the top of the HVAC housing (3). Make sure the sensor is fully engaged to the housing.
2. Connect the wire harness connector (2) to the evaporator temperature sensor.
3. Install the instrument panel Instrument Panel - Installation.
4. Reconnect the negative battery cable.
