Installation







INSTALLATION

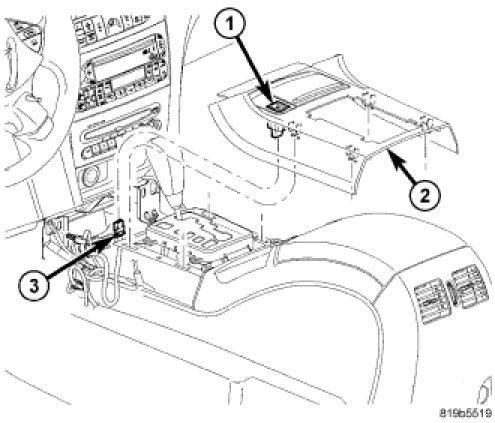

1. Install ESP Off switch (1) into transmission range indicator surround bezel (2).
2. Connect wiring connector (3) to ESP Off switch (1), then snap transmission range indicator surround bezel (2) into place on center console.
3. Install shift bezel. Console Shifter Bezel - Installation.
