Installation







INSTALLATION

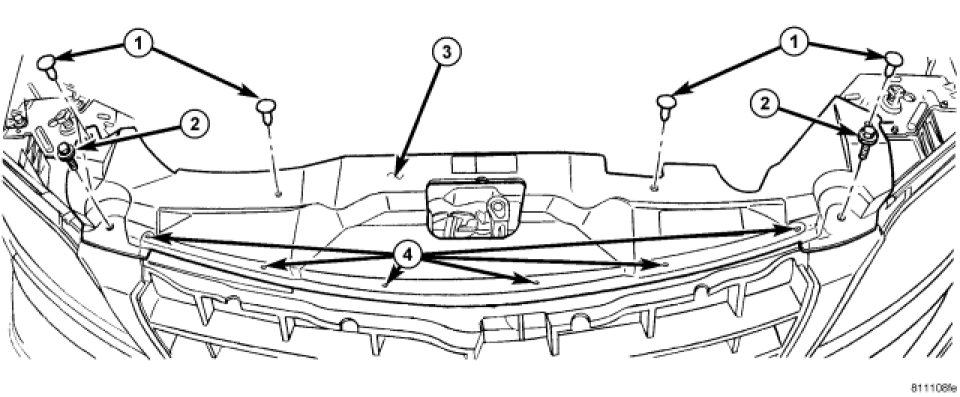

1. Place radiator closure panel into position.
2. Install one bolt on each side attaching to radiator crossmember.
3. Install four push pins attaching radiator closure panel to radiator crossmember.
4. Install six screws attaching radiator closure to the upper grille.
5. Close hood.
