Removal

REMOVAL

1. Remove fascia.Front Fascia - Removal
2. Remove inner splash shield. Front Wheelhouse Splash Shield - Removal.




3. Remove outboard cowl fender bracket screw (2).
4. Remove fender silencer. Removal




5. Remove applique screw (1).

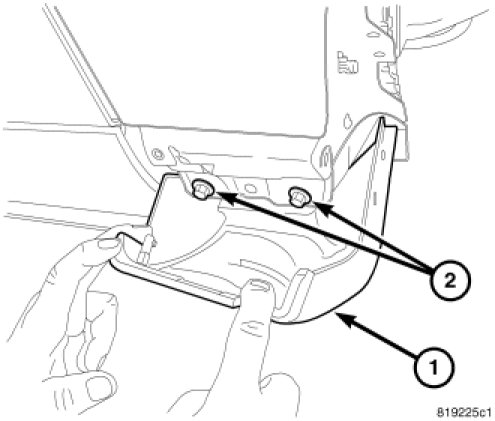

6. Pull down applique (1) exposing fender attaching screws (2).




7. Remove fender (1) screws (2) to lower sill panel.




8. Remove fender (1) screw (2) to A-pillar.




9. Remove fender (1) to body screws (2).




10. From inside engine compartment, remove bolts (2) attaching fender (1) to upper rail.
11. Remove fender (1) from vehicle.
