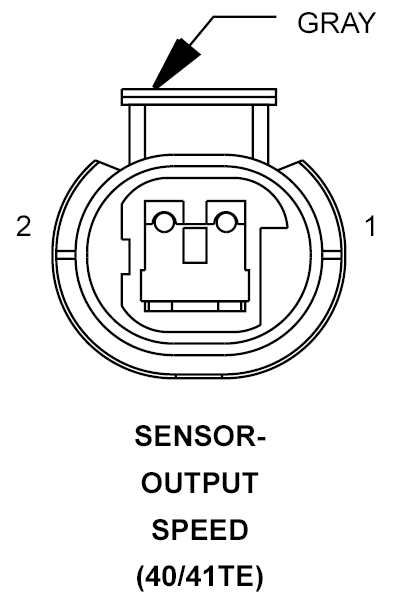

Output Speed Sensor (40/41TE) Connector End View
SENSOR-OUTPUT SPEED - GRAY 2-WAY (40/41TE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T13 18DG/VT |
SENSOR GROUND |
| 2 |
T14 18DG/BR |
OUTPUT SPEED SIGNAL |
