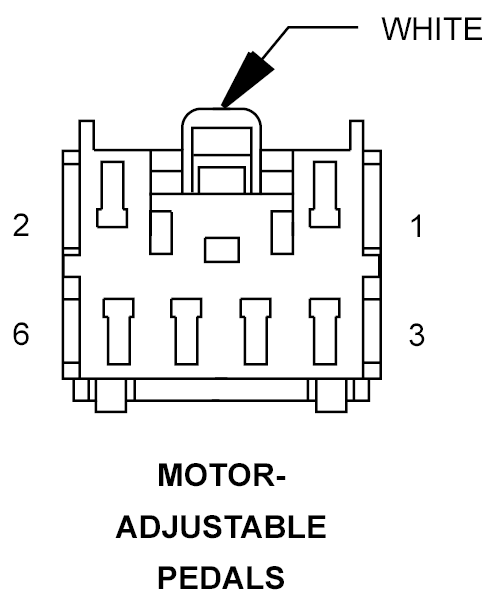

Adjustable Pedals Motor Connector End View
MOTOR-ADJUSTABLE PEDALS - WHITE 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P205 14LG/DB |
ADJUSTABLE PEDALS MOTOR FORWARD |
| 2 |
P206 14LG/TN |
ADJUSTABLE PEDALS MOTOR REVERSE |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
- |
- |
