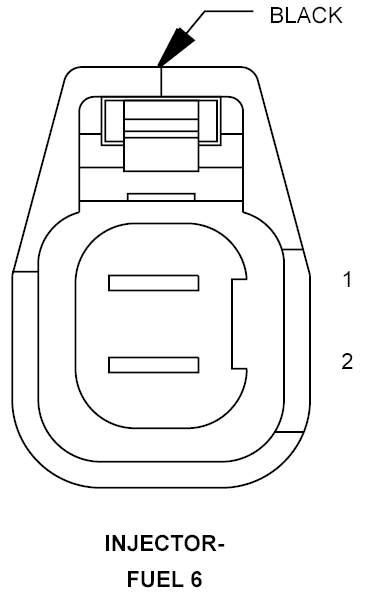

Fuel Injector 6 Connector End View
INJECTOR-FUEL 6 - BLACK 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K344 16BR/GY |
ASD RELAY OUTPUT (3.8L) |
| 1 |
F343 16PK/BR |
ASD RELAY OUTPUT (4.0L) |
| 2 |
K58 16BR/VT |
INJECTOR 6 CONTROL |
