Chrysler
>>
2008
>>
Pacifica Limited, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P2111 To P2181
>>
P2135-Throttle Position Sensor 1/2 Correlation - 4.0L
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

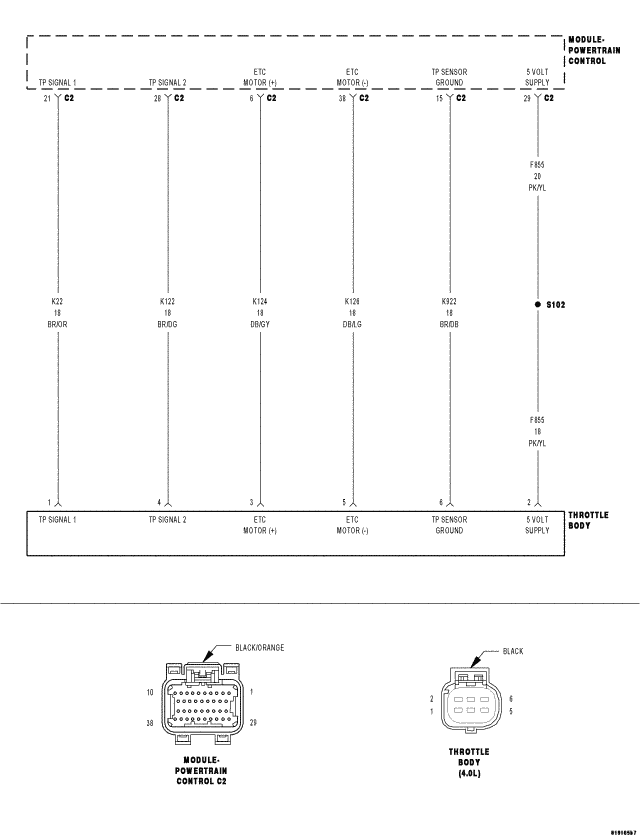

Fig 1: Throttle Body Circuit Schematic - 4.0L
Courtesy of CHRYSLER LLC
