Removal

REMOVAL





CAUTION: When disconnecting speed sensor connector, be sure that the connector weather seal does not fall off or remain in old sensor.

1. Disconnect the battery cables.
2. Remove air cleaner assembly (1).




3. Remove the battery hold down clamp and remove the battery (1).




4. Remove the battery tray (1).




5. Disconnect output speed sensor connector.

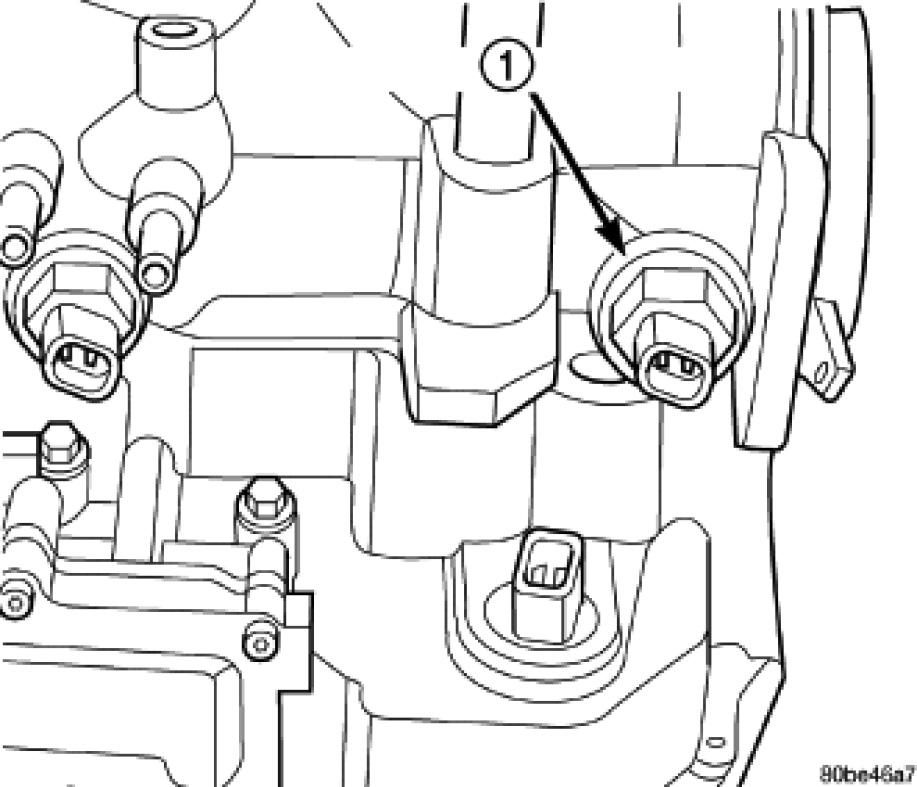

6. Unscrew and remove output speed sensor (1).

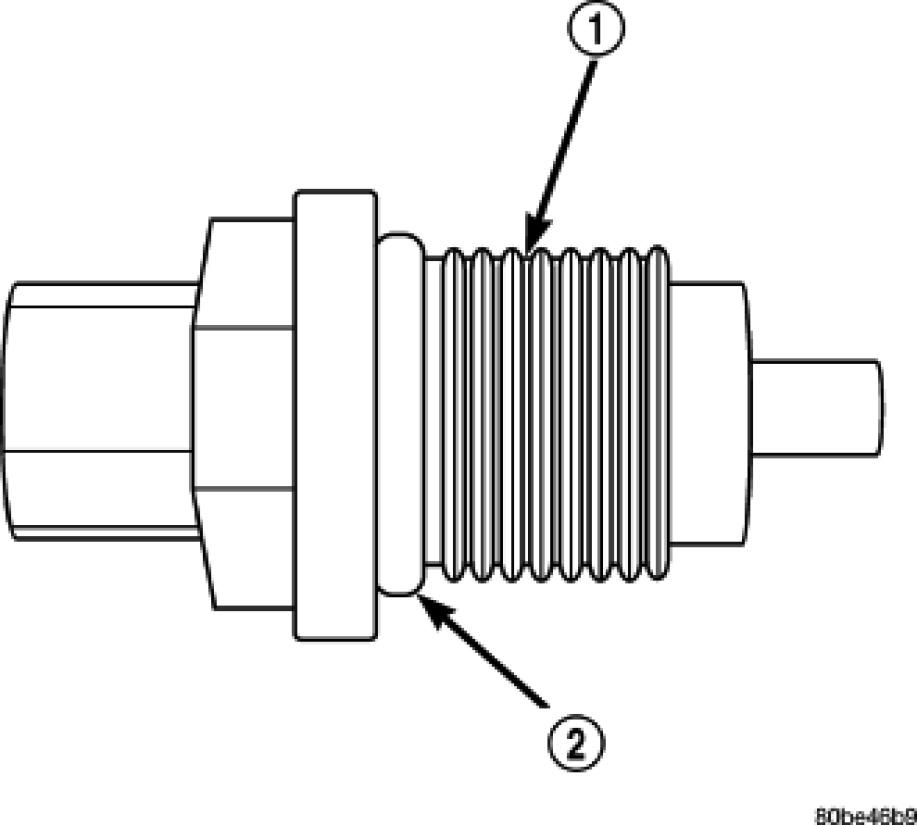

7. Inspect speed sensor o-ring (2) and replace if necessary.
