Installation







INSTALLATION

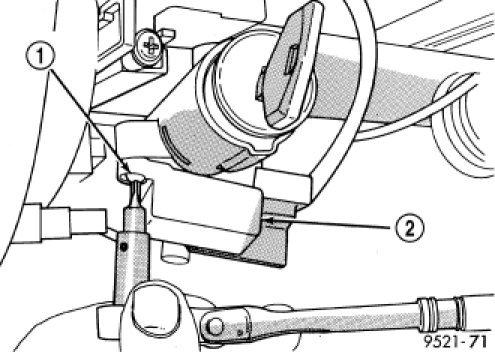

1. Position the interlock housing at steering column. Install the two interlock mechanism-to-steering column attaching screws (1). Torque screws to 3 Nm (21 in. lbs.).
2. Snap the interlock cable into the housing.

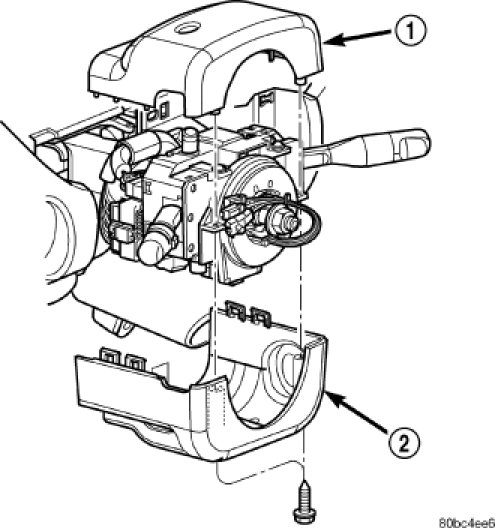

3. Install steering column upper and lower shrouds (1,2).

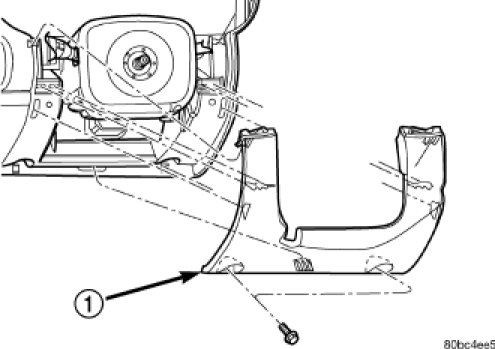

4. Install steering column lower cover (1).
