Removal







REMOVAL

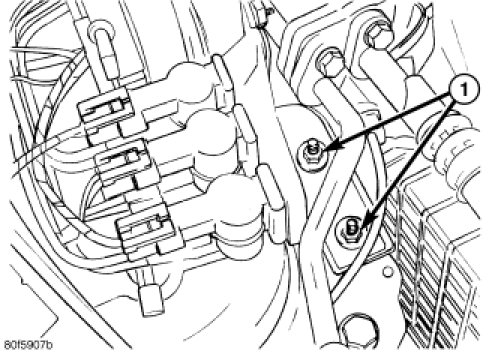

1. Remove nuts (1) securing solenoid mounting bracket to shock tower.
2. Disconnect solenoid electrical connector.
3. Disconnect vacuum harness connector from solenoid.

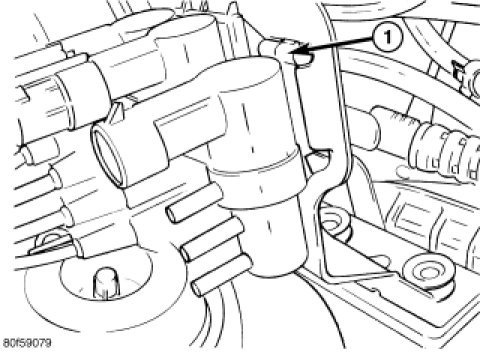

4. Push on solenoid lock tab (1) and slide solenoid off bracket.
