Home >> Chrysler >> 2008 >> Crossfire V6-3.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Underhood Accessory Fuse Block
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

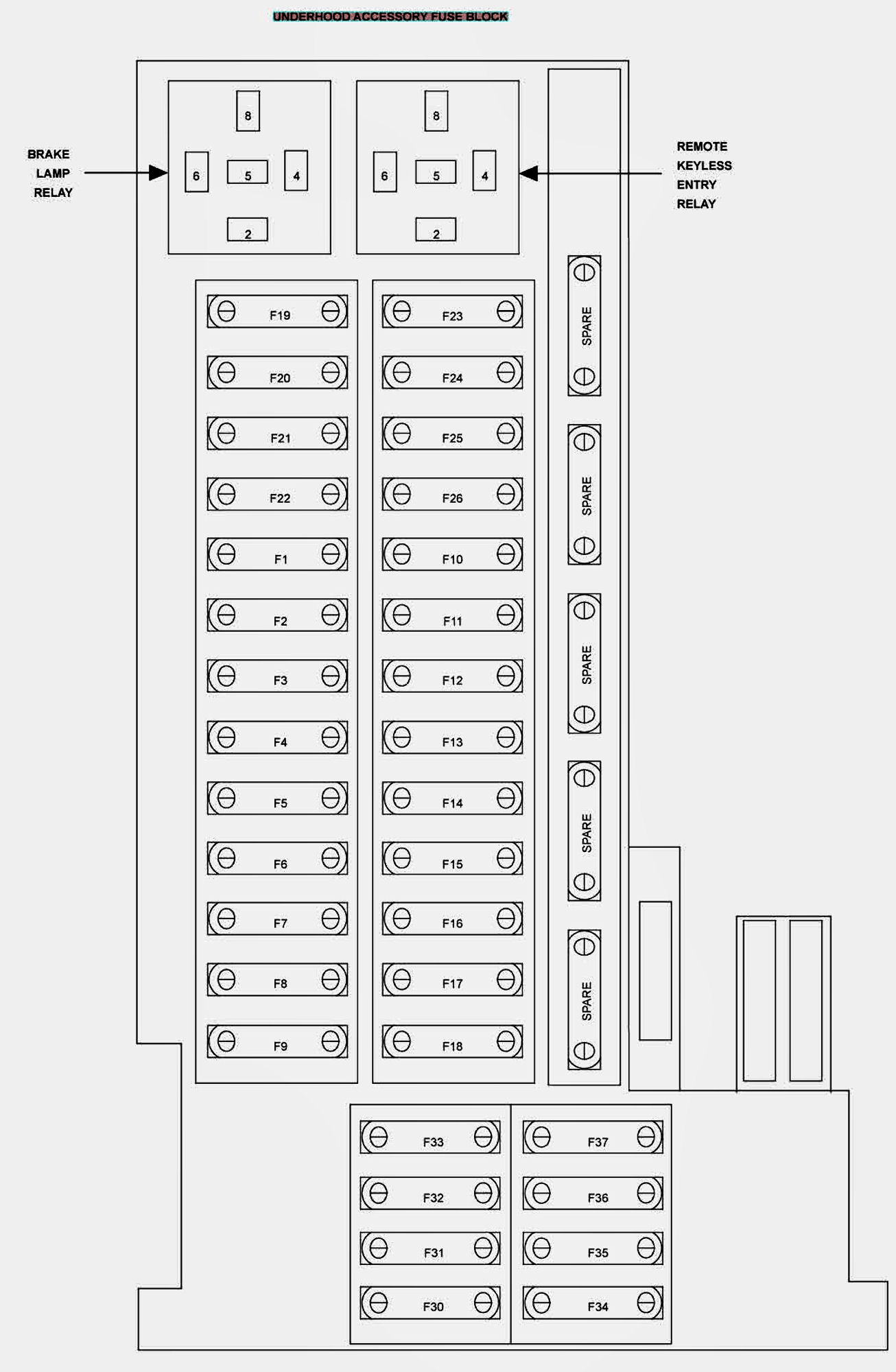

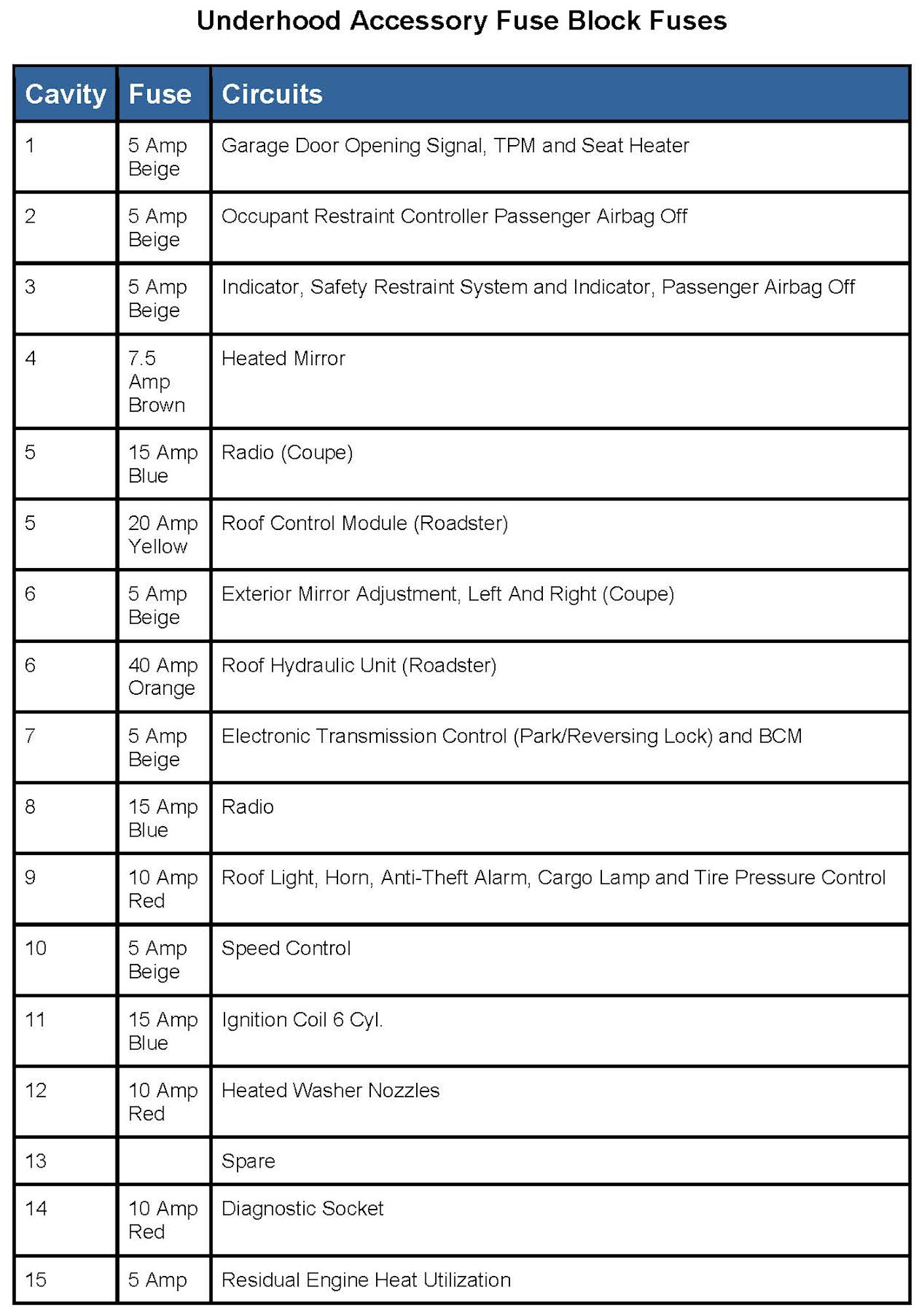

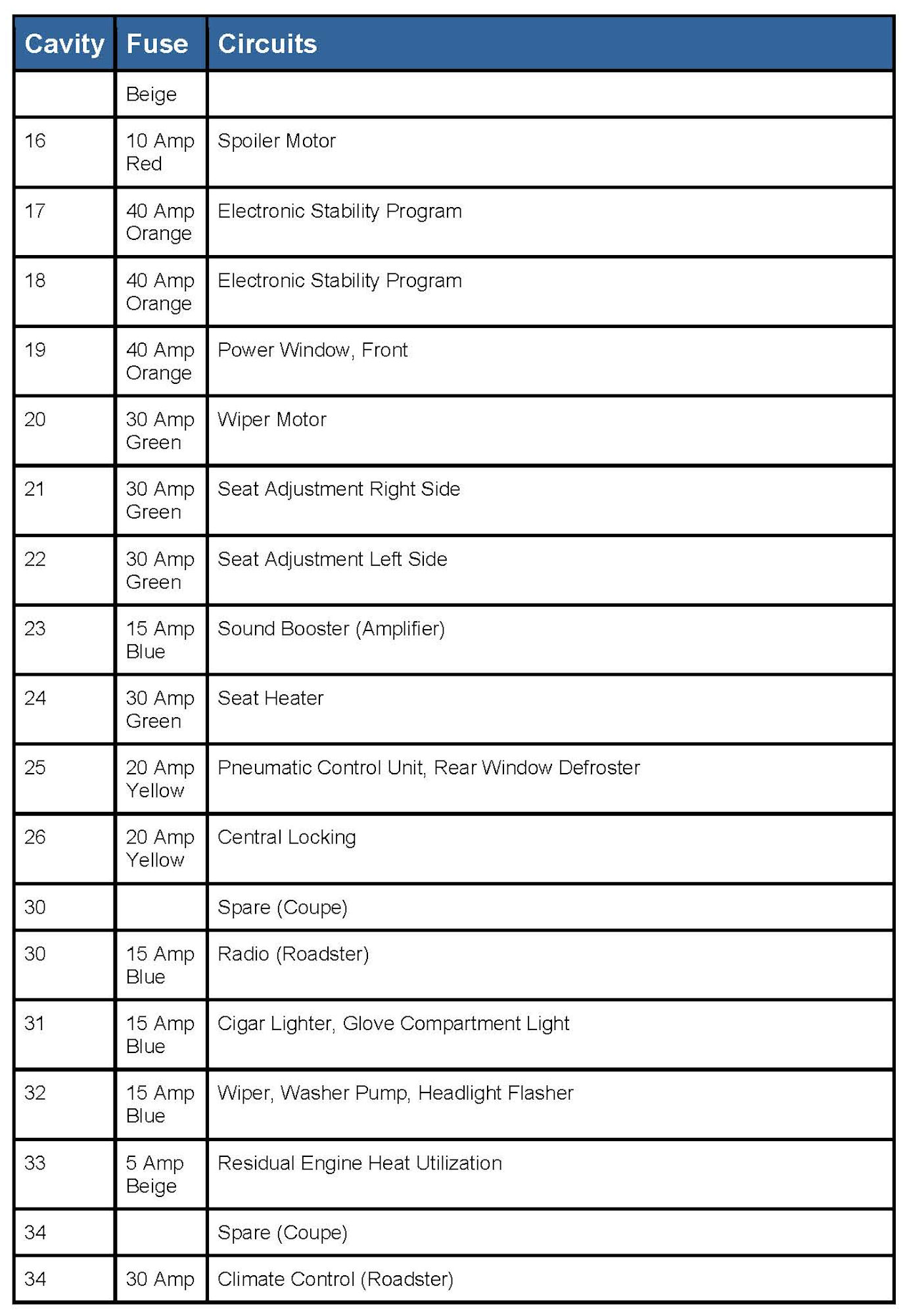

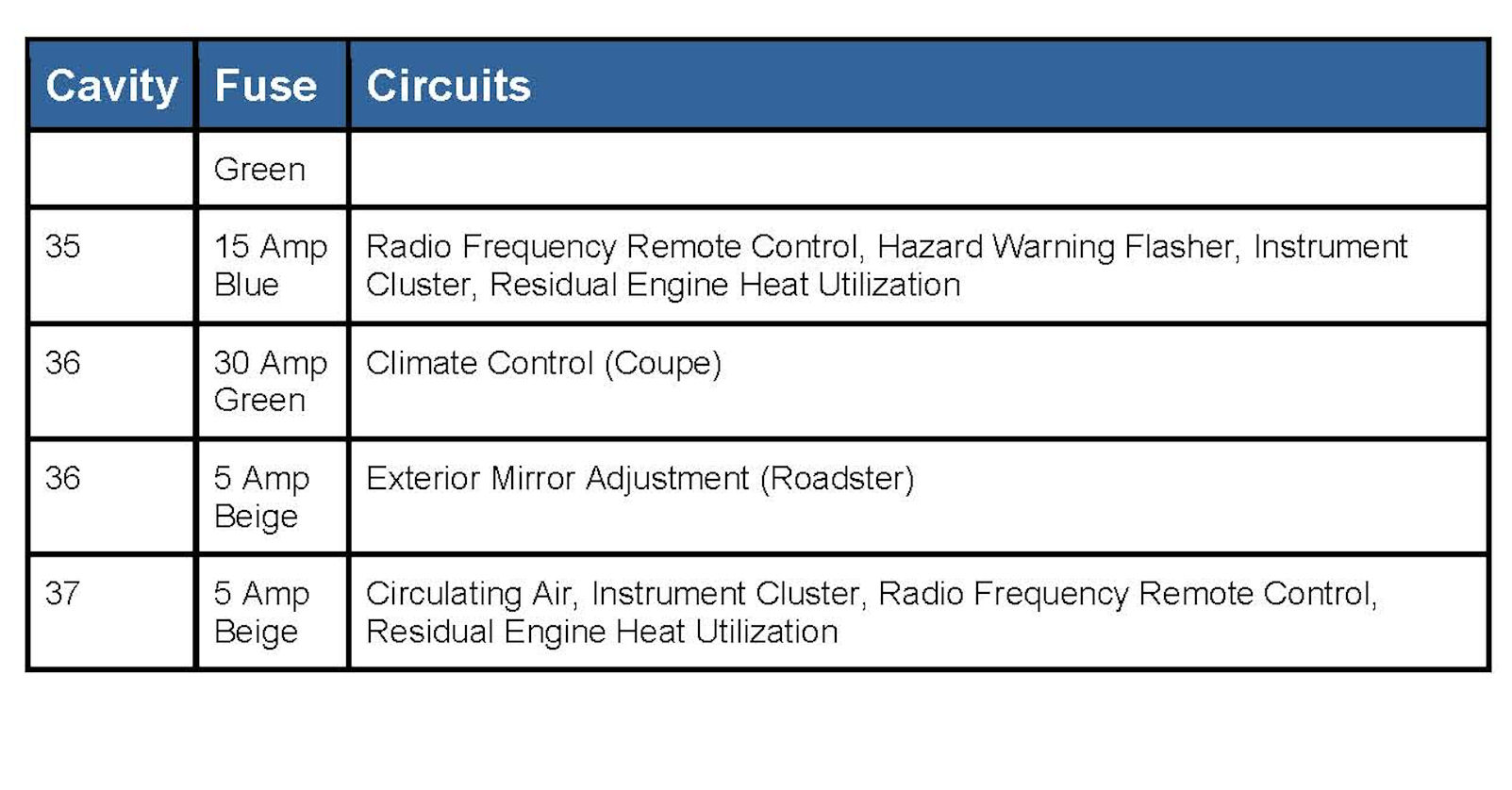

Underhood Accessory Fuse Block
