Engine Coolant Temperature Sensor - Installation







INSTALLATION





1. Clean any debris or corrosion from the engine coolant temperature sensor mounting surface.
2. Use a small amount of petroleum jelly to lubricate the sensor seal.

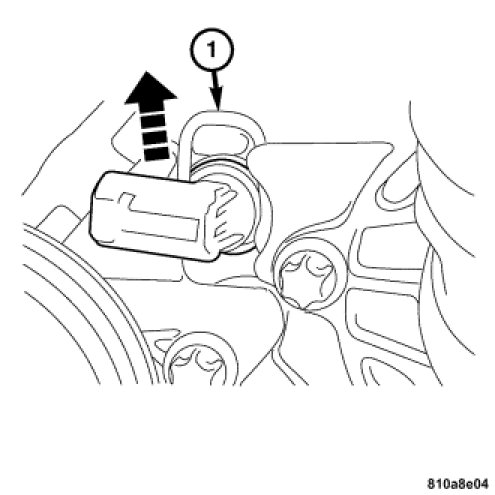

3. Install the engine coolant temperature sensor and retaining clip (1).

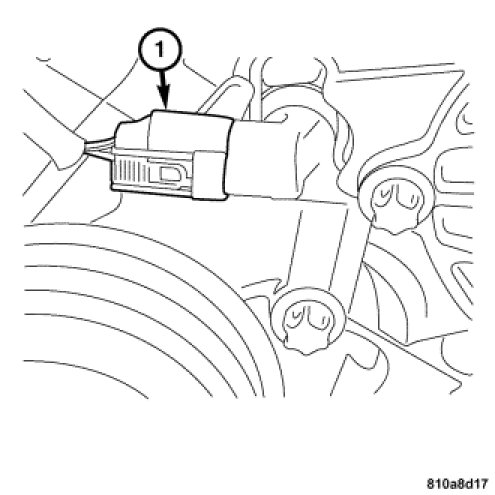

4. Connect the engine coolant temperature sensor harness connector (1).

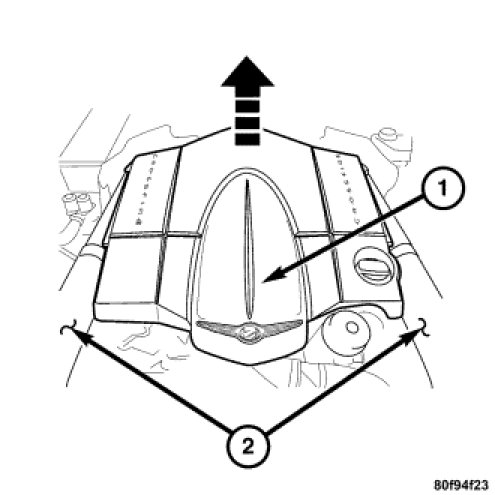

5. Install the engine cover (1). Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.

NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.

6. Refill the cooling system. Service and Repair.
7. Connect the negative battery cable.
