Sentry Key Remote Entry Module







SENTRY KEY REMOTE ENTRY MODULE





1. Install the SKREEM module to the base plate.

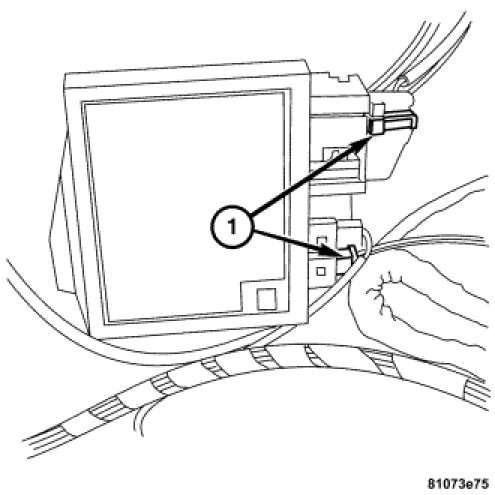

2. Connect the 18-pin electrical connector and the 2-pin CAN bus connector (1) to the SKREEM.
3. Connect the 2-pin connector for the sentry key antenna ring.
4. Install the instrument cluster. Instrument Cluster - Installation.
5. Connect the negative battery cable.
