Battery: Locations

Component ID: 22
Component : BATTERY

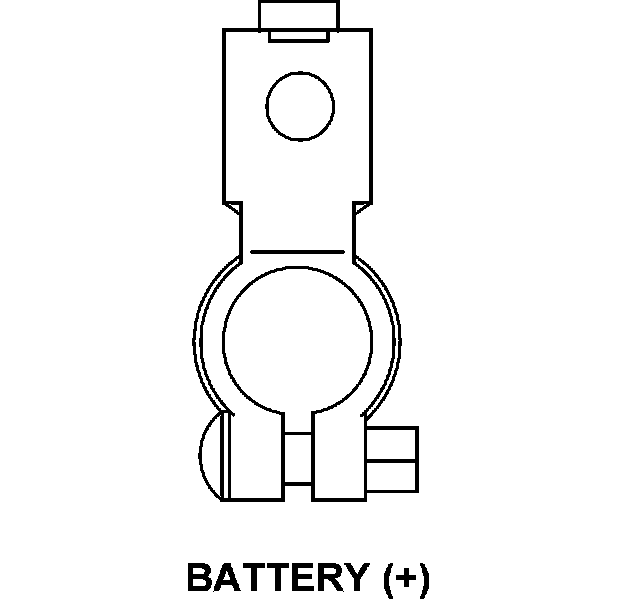

Connector:
Name : BATTERY
Color :
# of pins : 1
Qualifier : (+)




Pin Circuit Description
1 A1 4RD B(+)
Pin Circuit Description
1 A1 6RD B(+)

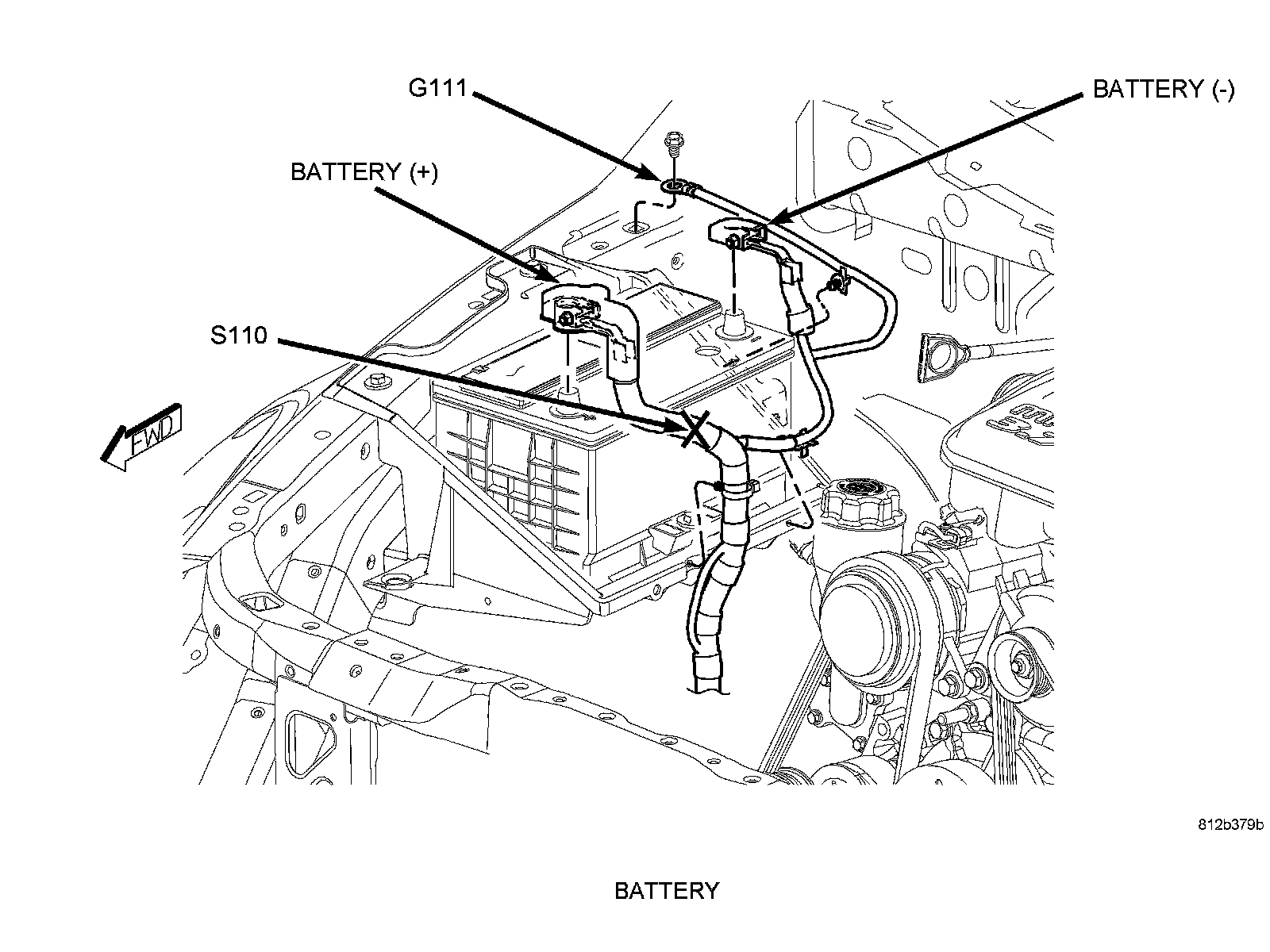

Component Location - 5

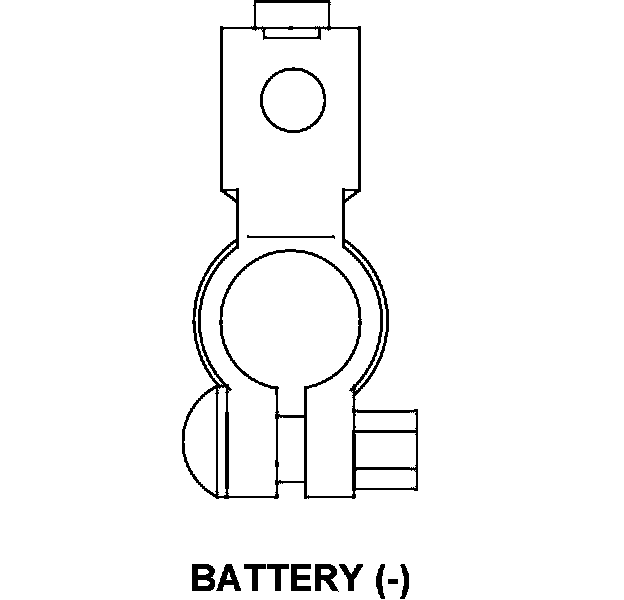

Connector:
Name : BATTERY
Color :
# of pins : 2
Qualifier : (-)




Pin Circuit Description
1 Z902 4BK GROUND
2 Z901 4BK GROUND

Component Location - 5
