Resistor-Blower Motor-Rear

Component ID: 236
Component : RESISTOR-BLOWER MOTOR-REAR

Connector:
Name : RESISTOR-BLOWER MOTOR-REAR
Color :
# of pins : 3




Pin Circuit Description
1 C153 14DB/BR REAR BLOWER HIGH SPEED
2 C152 14LB/LG REAR BLOWER MEDIUM SPEED
3 C151 16LB/DG REAR BLOWER LOW SPEED

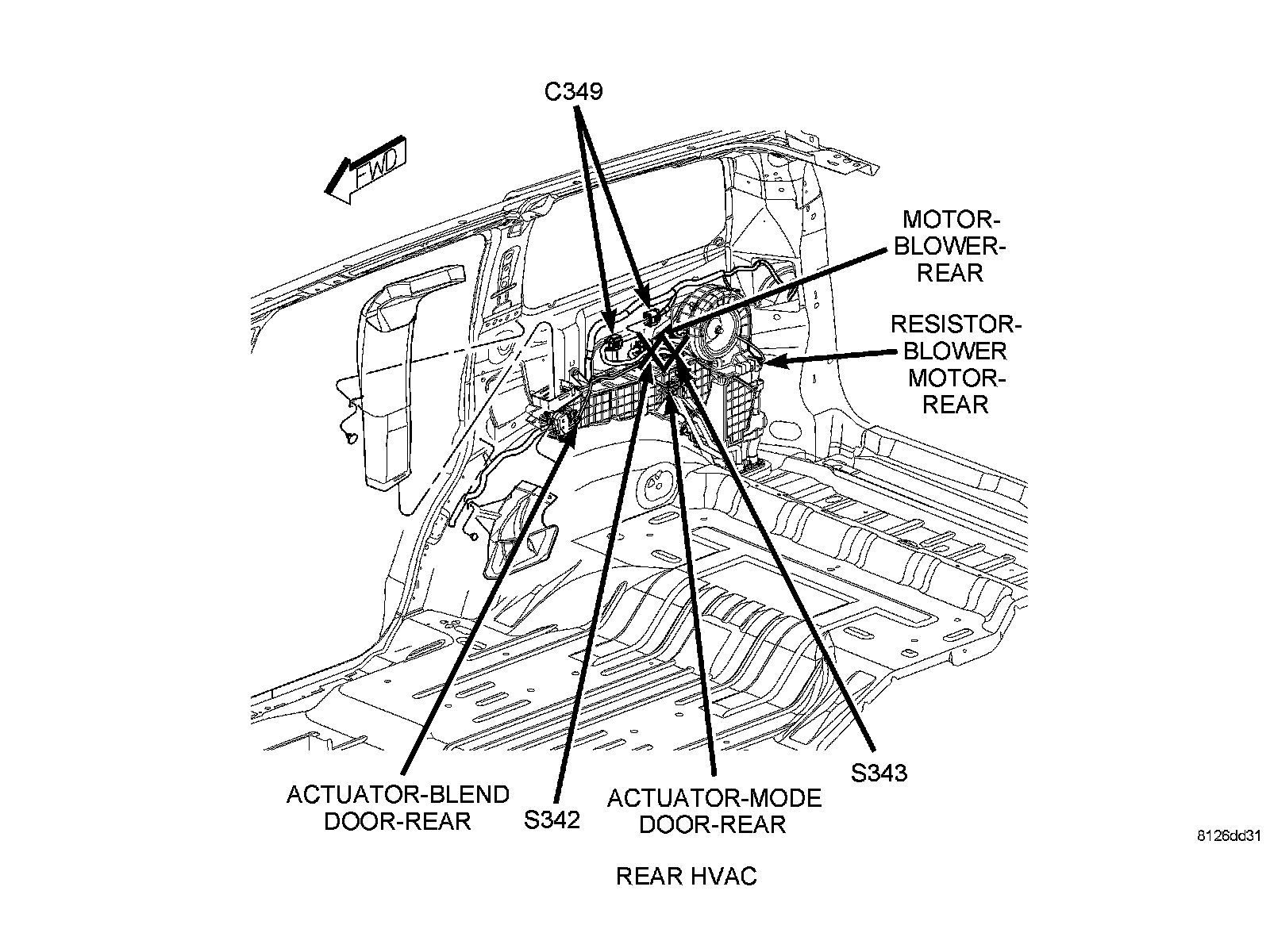

Component Location - 48
