Washer Fluid Level Switch




Component ID: 540
Component : SENSOR-WASHER FLUID LEVEL-FRONT

Connector:
Name : SENSOR-WASHER FLUID LEVEL-FRONT
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 Z901 20BK/DG GROUND
2 W1 20BR/TN WASHER FLUID LEVEL SWITCH SENSE

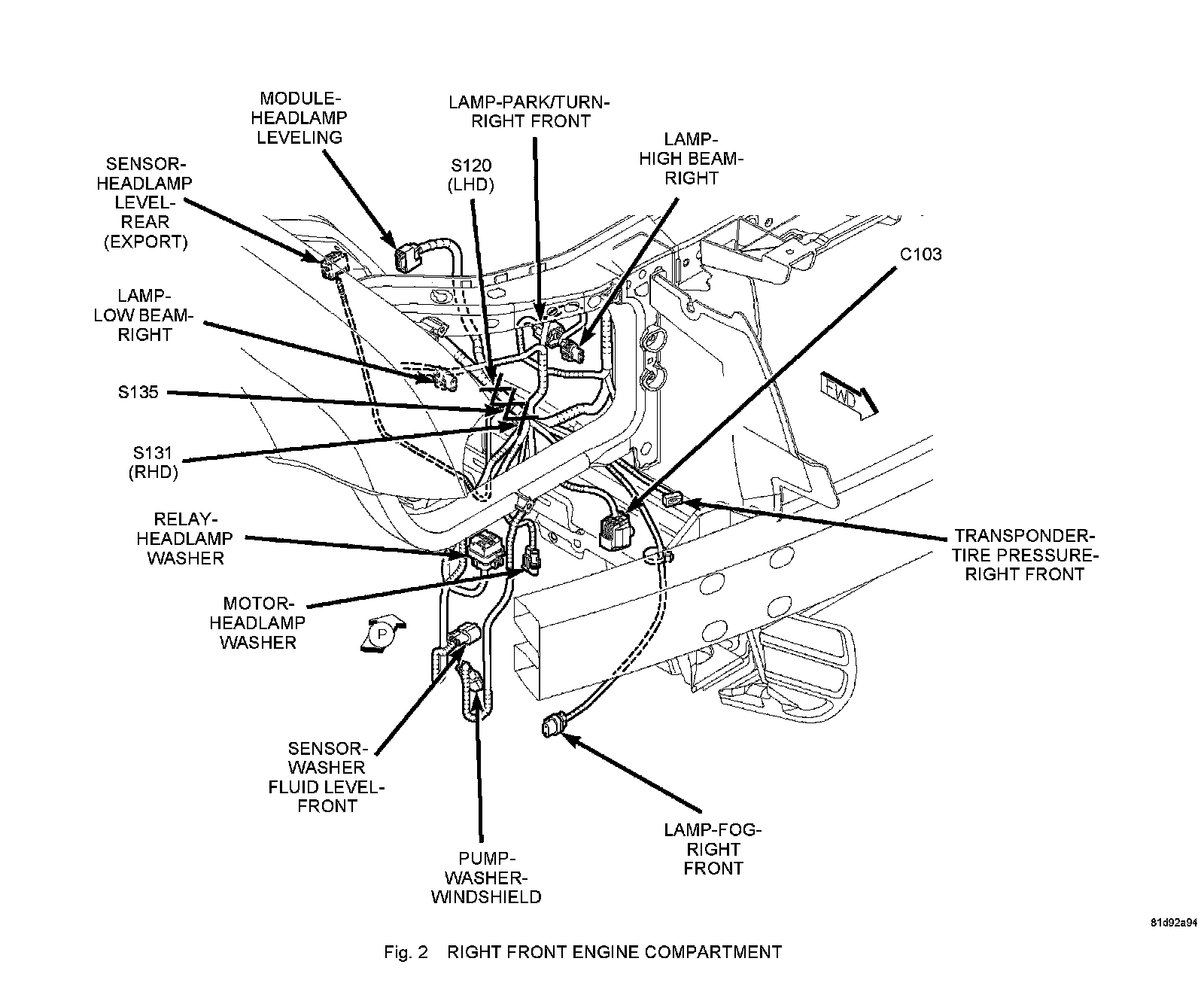

Component Location - 2
