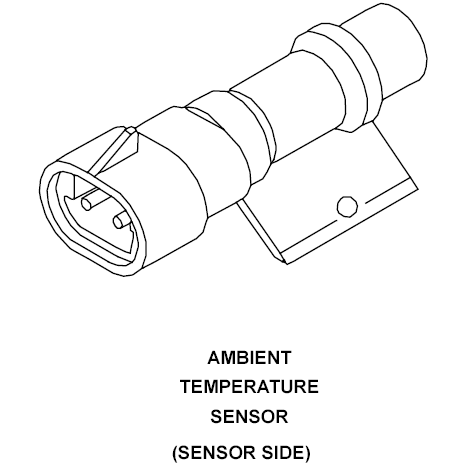

Ambient Temperature Sensor (Sensor Side) Connector End View
AMBIENT TEMPERATURE SENSOR - 2-WAY (SENSOR SIDE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
|
AMBIENT TEMPERATURE SENSOR SIGNAL (DIESEL) |
| 1 |
|
AAT SIGNAL (GAS) |
| 2 |
|
AMBIENT TEMPERATURE SENSOR RETURN (DIESEL) |
| 2 |
|
SENSOR GROUND (GAS) |
