MODULE, Engine Control: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Avenger and 2009 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

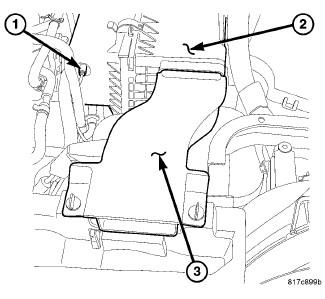

Fig 1: Air Inlet Duct
GC0120937Courtesy of CHRYSLER LLC
  1. Remove air inlet duct (3).
  2. Disconnect negative battery cable.
  3. Disconnect vacuum hose (1).
  4. Remove air filter housing assembly (2)
    Fig 2: Removing/Installing ECM - 2.0L Diesel
    GC0120936Courtesy of CHRYSLER LLC
  5. Disconnect both ECM (1) electrical connectors.
  6. Remove ECM bracket retaining bolts (2) and remove ECM (3).
