Removal






REMOVAL




1. Remove valve body assembly from transaxle..

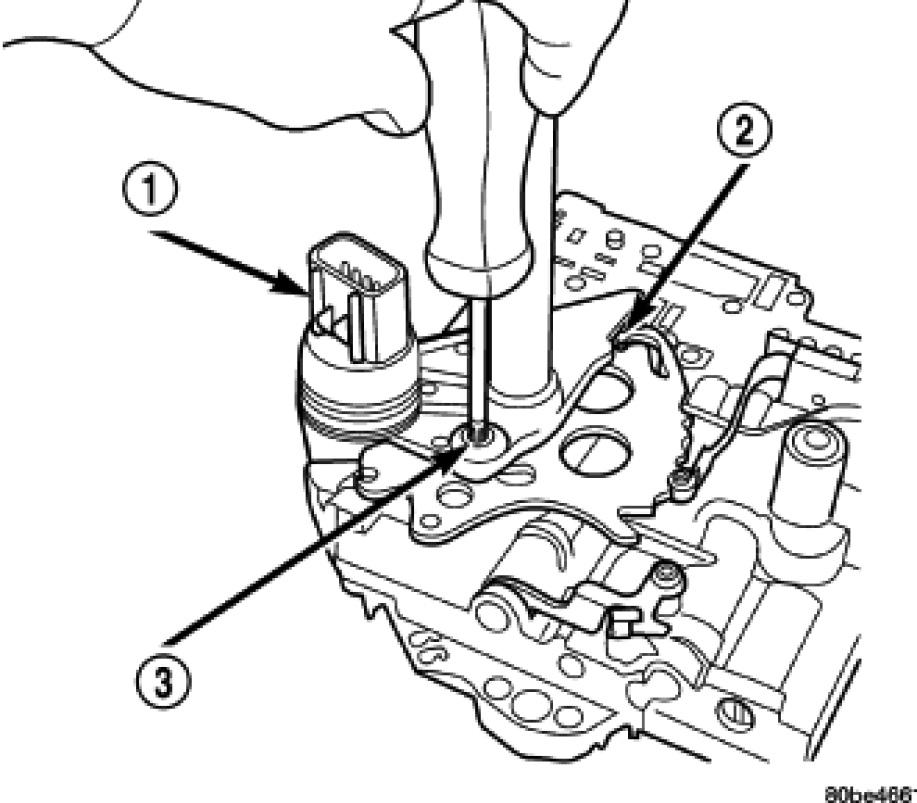

2. Remove Transmission Range Sensor retaining screw (3) and remove sensor (1) from valve body.
3. Remove TRS (1) from manual shaft.
