Lamp-Tail Stop/Park-Right

Component ID: 166
Component : LAMP-TAIL STOP/PARK-RIGHT

Connector:
Name : LAMP-TAIL STOP/PARK-RIGHT
Color :
# of pins : 3




Pin Description Circuit
1 STOP LAMP CONTROL OUTPUT L55 20WT/OR
2 PARK LAMP CONTROL OUTPUT L217 20WT/VT
3 GROUND Z917 20BK

Component Location - 70




Component Location - 73




Component Location - 74

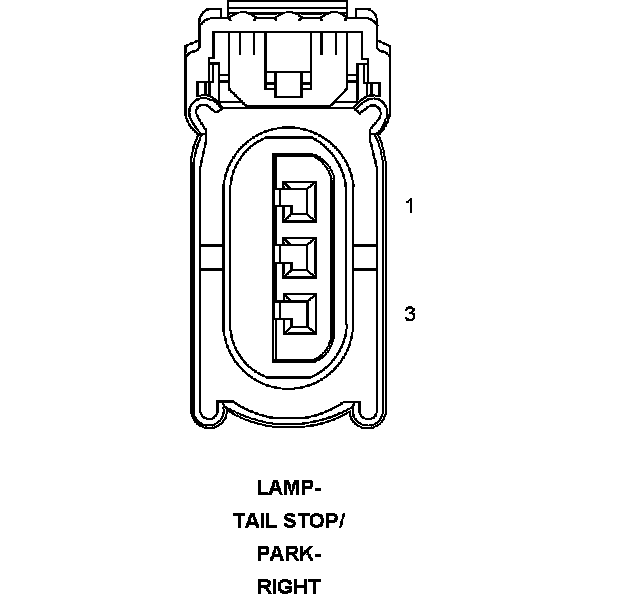

Fig. 74:
