Installation






INSTALLATION

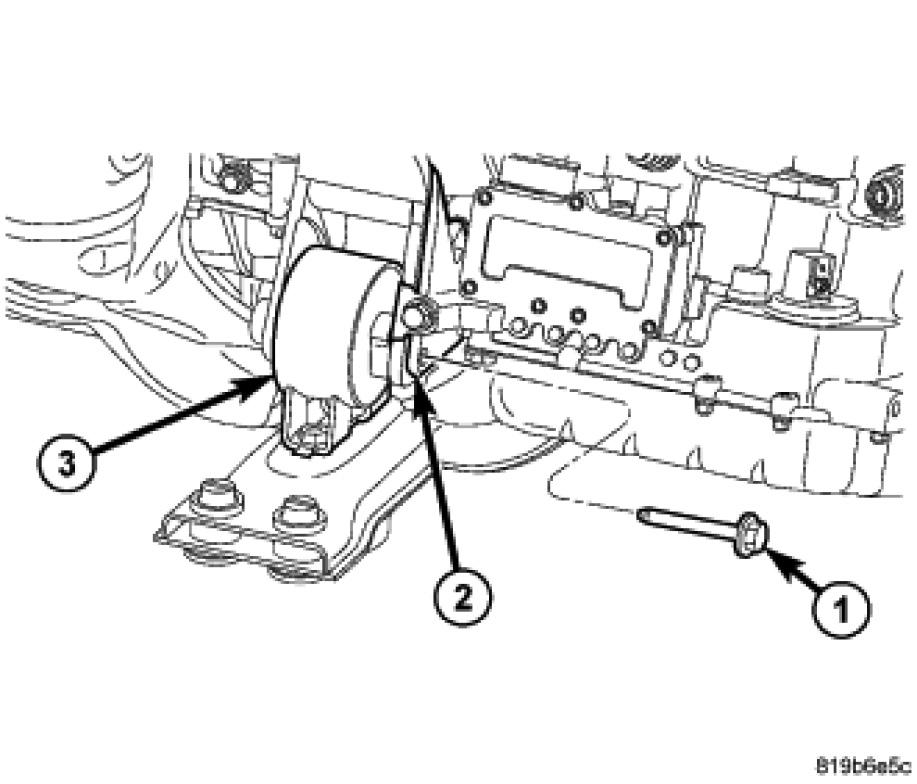

1. Install the fore/aft crossmember and install the engine anti-roll mount (3) through bolt (1). Tighten to 50 Nm (37 ft.lbs.)

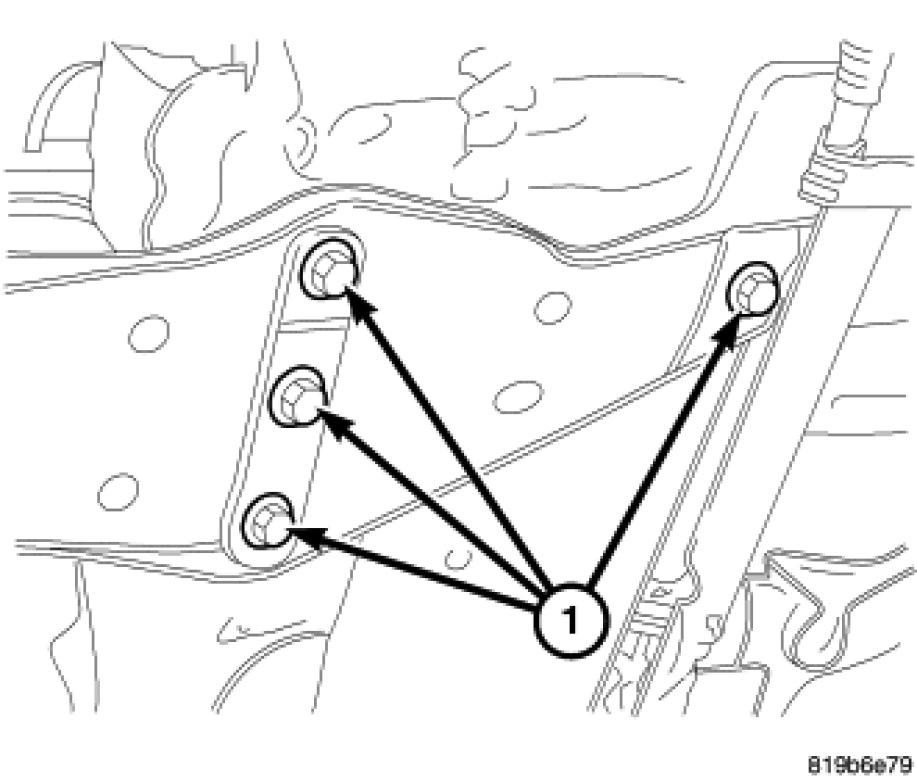

2. Install bolts (1) and tighten to 55 Nm (40.5 ft. lbs.).

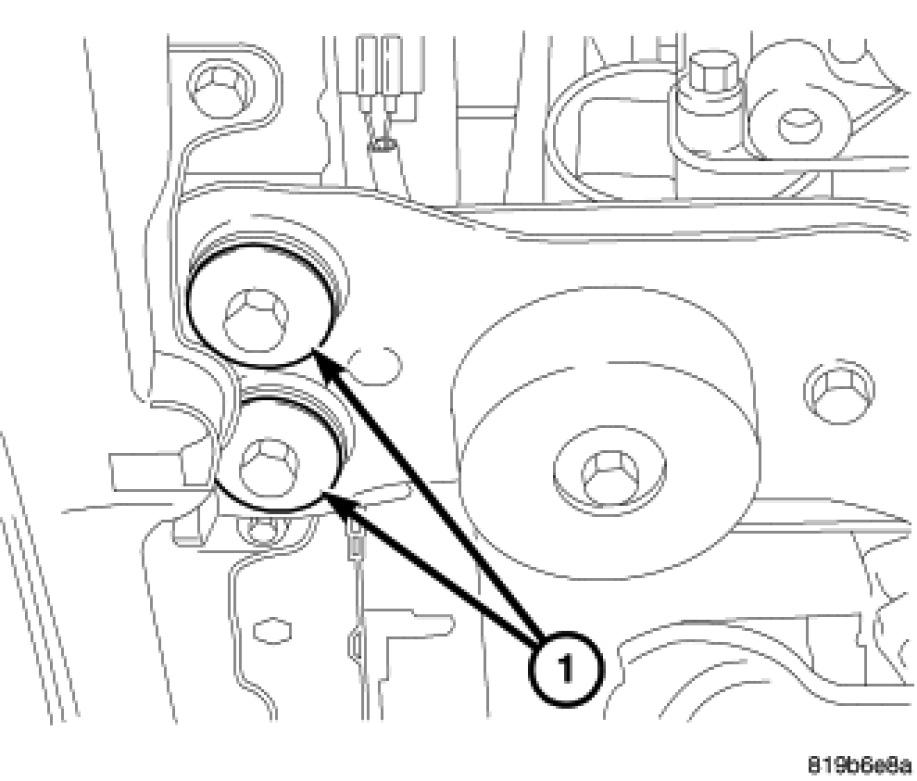

3. Tighten bolts (1) to 55 Nm (41 ft. lbs.).

4. If equipped, install the belly pan.
