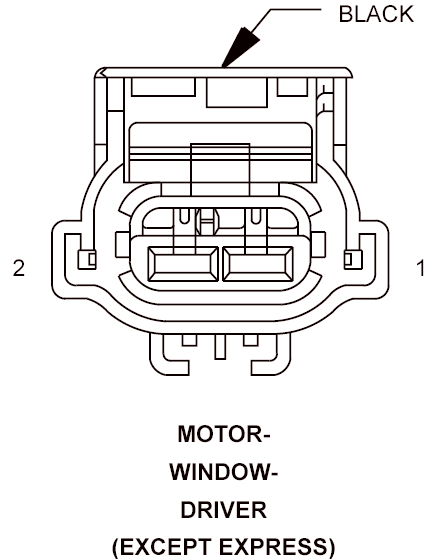

Driver Window Motor (Except Express) Connector End View
MOTOR-WINDOW-DRIVER - BLACK 2-WAY (EXCEPT EXPRESS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q11 14OR/LG |
DRIVER WINDOW DRIVER (UP) |
| 2 |
Q21 14OR/WT |
DRIVER WINDOW DRIVER (DOWN) |
