Left Mount

WARNING: This page is about a different variant/trim than selected.

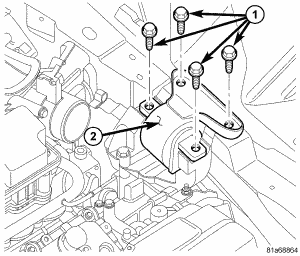

Fig 1: Removing/Installing Left Engine Mount
GC0060244Courtesy of CHRYSLER LLC
  1. Position mount to mounting bracket.
  2. Raise transmission into position with floor jack.
  3. Install the four vertical bolts (1). Torque fasteners to 61 N.m (45 ft. lbs.).
  4. Remove floor jack and wooden block.
  5. Install the air cleaner housing assembly. See REMOVAL .
  6. Connect negative battery cable.
