No Response From Transmission Control Module (MPS6): Notes
WARNING: This page is about a different car, the 2009 Dodge Avenger and 2009 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

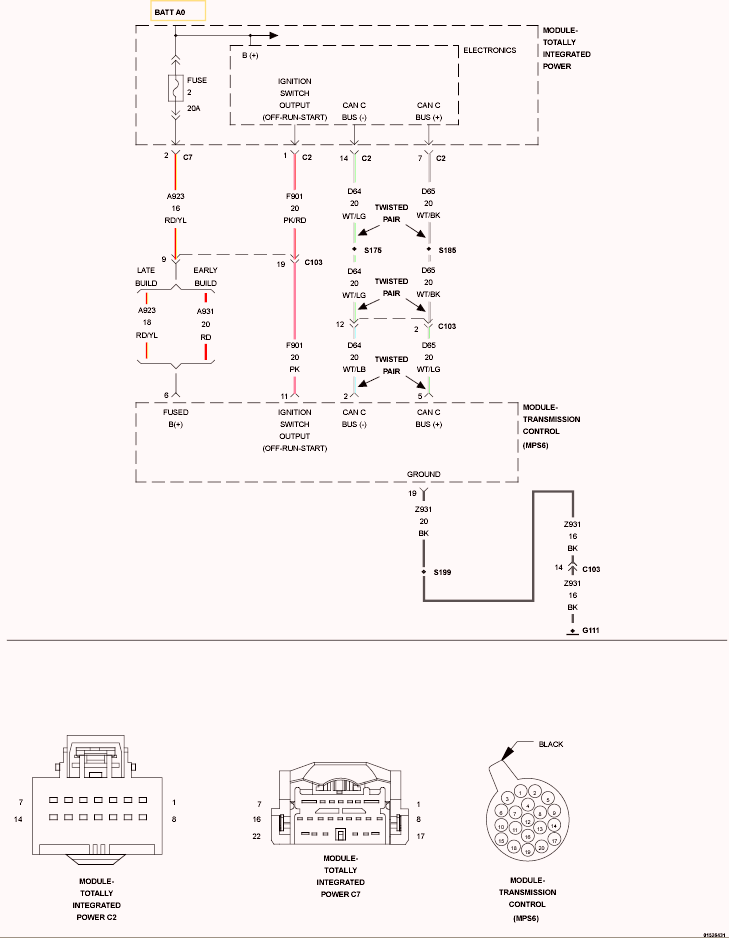

For complete wiring diagrams refer to:
- SYSTEM WIRING DIAGRAMS for Sebring 2D Convertible.
- SYSTEM WIRING DIAGRAMS for Sebring 4D Sedan.
- SYSTEM WIRING DIAGRAMS for Avenger.
| Possible Causes |
|---|
| (F901) IGNITION SWITCH OUTPUT (UNLOCK-RUN-START) CIRCUIT OPEN OR SHORTED |
| (A923) OR (A931) FUSED B(+) CIRCUIT OPEN OR SHORTED |
| (Z931) GROUND CIRCUIT OPEN |
| (D65) CAN C BUS (+) CIRCUIT OPEN |
| (D64) CAN C BUS (-) CIRCUIT OPEN |
| TRANSMISSION CONTROL MODULE |
