Throttle Body - 2.7L Engine

Fig 1: Locating Seal & Location Pins

Courtesy of CHRYSLER LLC

Make sure that the throttle body o-ring (1) is in place in the manifold.
Position throttle body on intake manifold alignment pins and install 3 mounting bolts. Do Not tighten bolts at this time.

Fig 2: Identifying Throttle Body Stud Location
Courtesy of CHRYSLER LLC
Install throttle body mounting stud in the lower left hole.

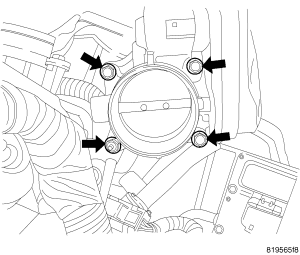

Fig 3: Identifying Throttle Body Bolts
Courtesy of CHRYSLER LLC
Tighten throttle body bolts in a cross pattern starting with throttle body mounting stud to 13.6 N.m (120 in. lbs.).

Fig 4: Identifying Brace For Throttle Body
Courtesy of CHRYSLER LLC
Install throttle body support bracket and tighten nut.

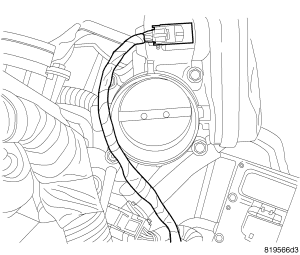

Fig 5: Identifying Electrical Connection
Courtesy of CHRYSLER LLC
Connect electrical connector to throttle body.

Fig 6: View of Inlet Hose & Electrical Connection
Courtesy of CHRYSLER LLC
Install clean air hose to throttle body.
Connect negative cable to battery.
A Scan Tool may be used to learn electrical parameters. Go to the Miscellaneous menu, and then select ETC Relearn. If the relearn is not preformed, a Diagnostic Trouble Code (DTC) will be set. If necessary, use a scan tool to erase any Diagnostic Trouble Codes (DTC's) from PCM.
