Installation

4.0L

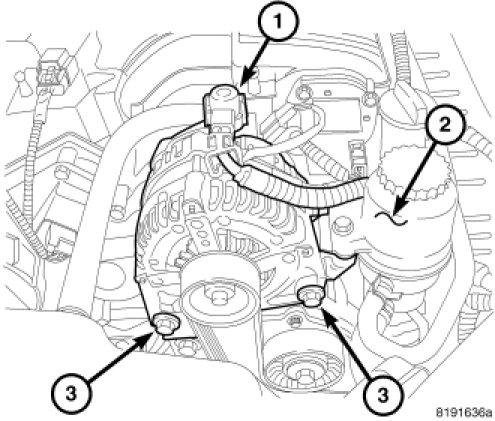

1. Install generator.

2. Install the 2 mounting bolts (3).

3. Tighten mounting bolts to 54 Nm (40 ft. lbs.).

4. Install accessory drive belt.

5. Install battery connection to generator (1).

6. Tighten nut to 12.5 Nm (110 in. lbs.).

7. Connect negative battery cable.

8. Install engine cover.
