Engine Torque Specifications






SPECIFICATIONS - TORQUE

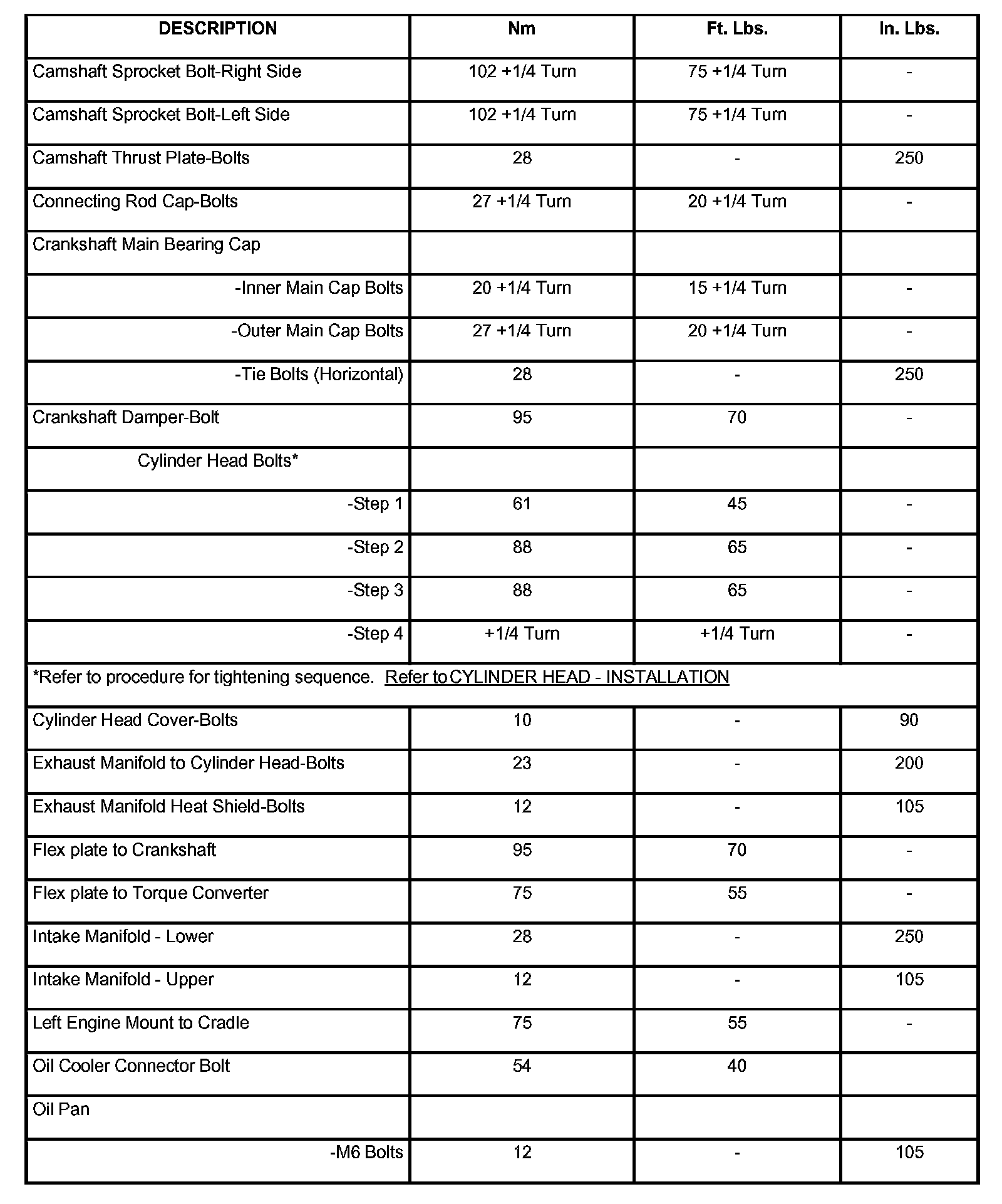

Torque (Part 1):





TORQUE (Part 1)

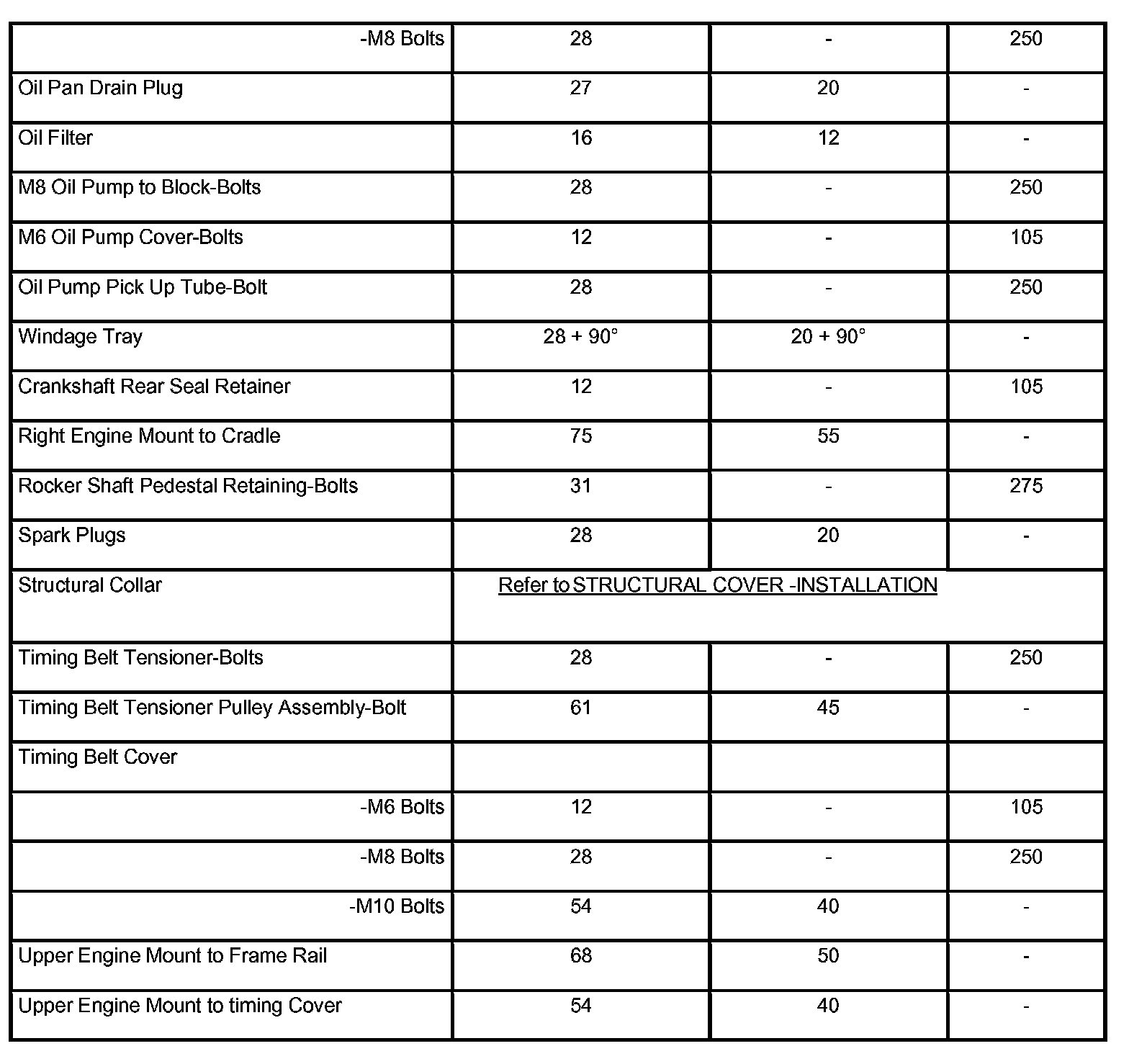

Torque (Part 2):





TORQUE (Part 2)

WATER PUMP
Install mounting bolts and tighten to 12 Nm (105 in. lbs.).
