Installation






4.0L

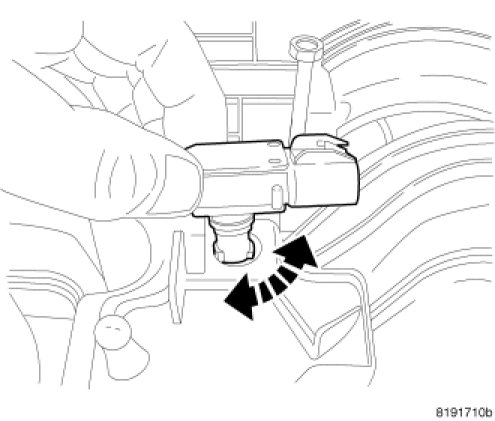

1. Install sensor and rotate.




2. Attach electrical connector to sensor.

3. Connect negative battery cable.
