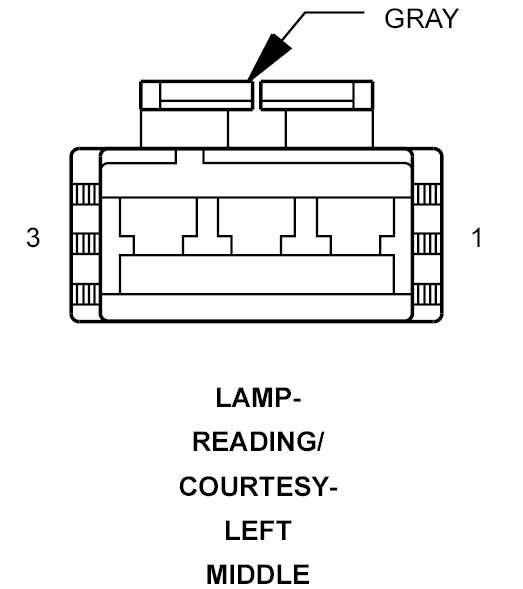

Left Middle Reading Lamp/Courtesy Lamp Connector End View
LAMP-READING/ COURTESY-LEFT MIDDLE - GRAY 3-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
M22 18YL/OR |
COURTESY LAMPS DRIVER |
| 2 |
Z327 18BK/WT |
GROUND |
| 3 |
M27 18YL/LB |
RAIL LAMPS DRIVER |
