Oil Pressure Switch Connector End View

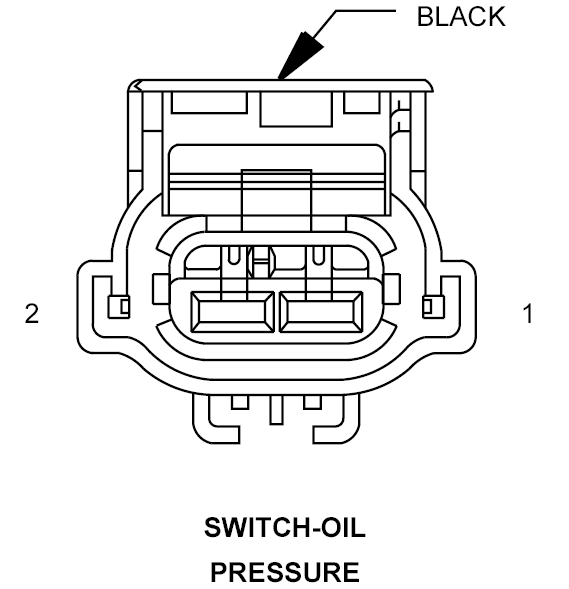

SWITCH-OIL PRESSURE - BLACK 2-WAY

GCS780119Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G6 16VT/GY OIL PRESSURE SIGNAL
2 - -
