Trunk / Liftgate Switch

Component ID: 372
Component : SWITCH-DECKLID RELEASE

Connector:
Name : SWITCH-DECKLID RELEASE
Color : BLACK
# of pins : 2
Qualifier : (PT27)




Pin Description Circuit
1 DECKLID RELEASE SWITCH SENSE P1 20TN/LG
2 GROUND Z906 20BK

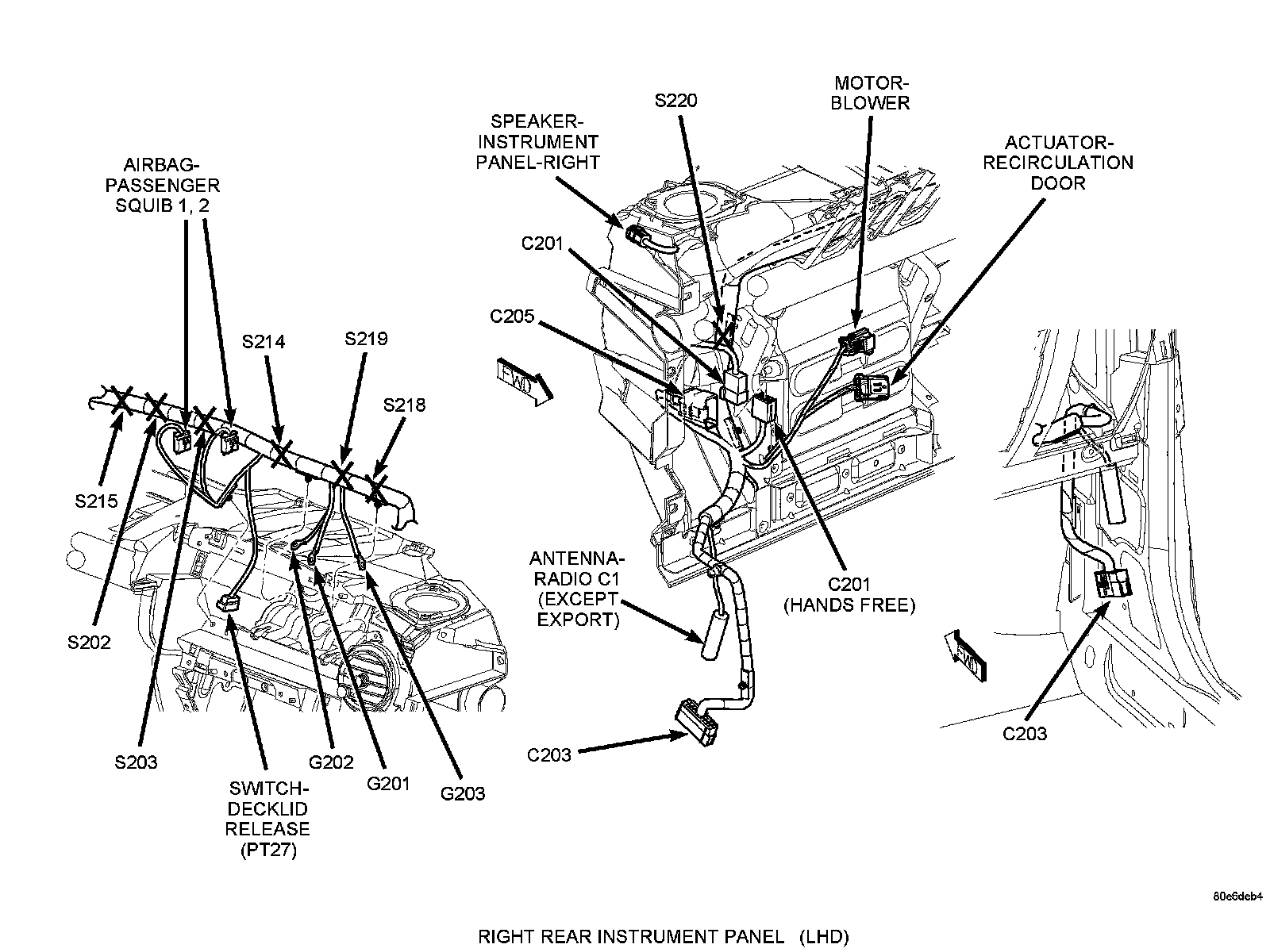

Component Location - 29




Component Location - 33
