Installation






INSTALLATION

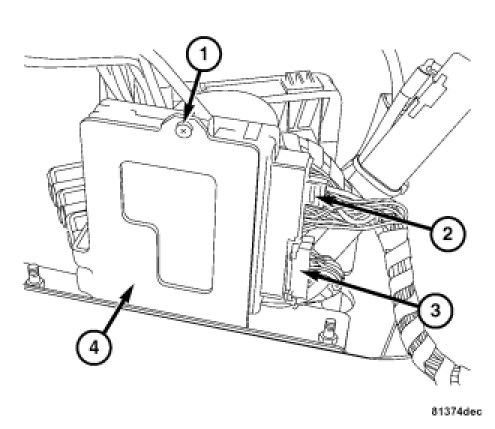

1. Install the power top control module to the hydraulic pump bracket (4).

2. Install the power top control module retaining screw (1).

3. Connect the power top control module harness connectors (2) and (3).

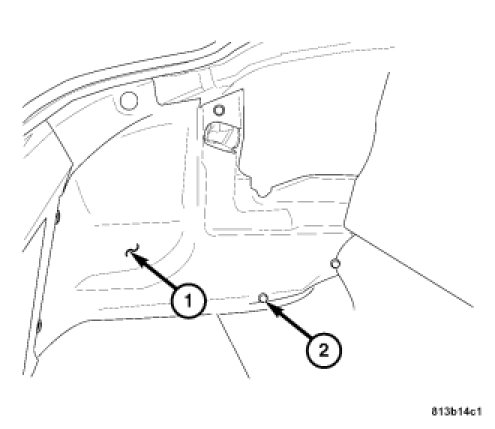

4. Install the trunk interior trim panel (1).

5. Install the plastic panel retainers (2).

6. Connect the negative battery cable.

7. Perform the Standard Procedure to complete the installation and programing of the new power top control module.
