Fuel Level Sensor: Locations

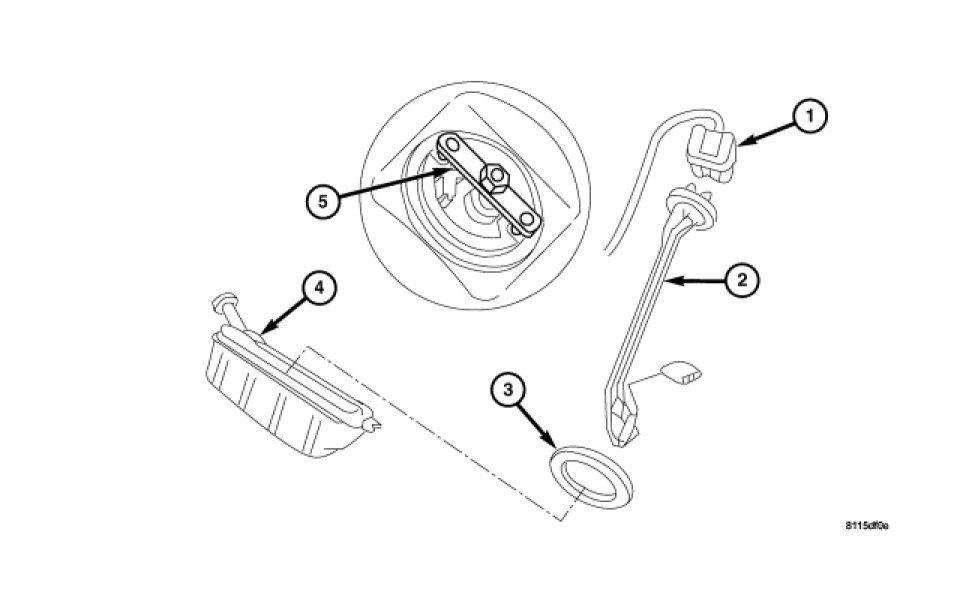

The Fuel Level Sending Unit (2) is combined with a Fuel Tank Pressure Sensor and is mounted at the top of the Fuel Tank (4) extending downward inside.
