Section 157 (Speed Control System (Service Information)): Description: Description
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

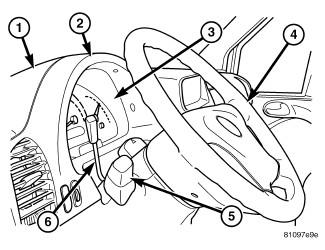

| 1 - COVER |
| 2 - BEZEL |
| 3 - INSTRUMENT CLUSTER |
| 4 - STEERING WHEEL |
| 5 - MULTI-FUNCTION SWITCH |
| 6 - SPEED CONTROL SWITCH |
The speed control system is electronically controlled by the diesel Engine Control Module (ECM). A cable and a vacuum controlled servo are not used. This is a servo-less system. Control of the system is accomplished by a 4-position, instrument panel mounted switch (5).
| 1 - SET / ACCELERATE |
| 2 - RESUME SET SPEED |
| 3 - SET / DECELERATE |
| 4 - OFF |
| 5 - SWITCH HANDLE |
Switch settings are:
- 1. Set / Accelerate
- 2. Resume Set Speed
- 3. Set / Decelerate
- 4. Off
WARNING:
THE USE OF SPEED CONTROL IS NOT RECOMMENDED WHEN DRIVING CONDITIONS DO NOT PERMIT MAINTAINING A CONSTANT SPEED, SUCH AS IN HEAVY TRAFFIC OR ON ROADS THAT ARE WINDING, ICY, SNOW COVERED, OR SLIPPERY.
The system is designed to operate at speeds above 25 mph (40 km/h).
