Tow Away Alarm Switch Connector End View

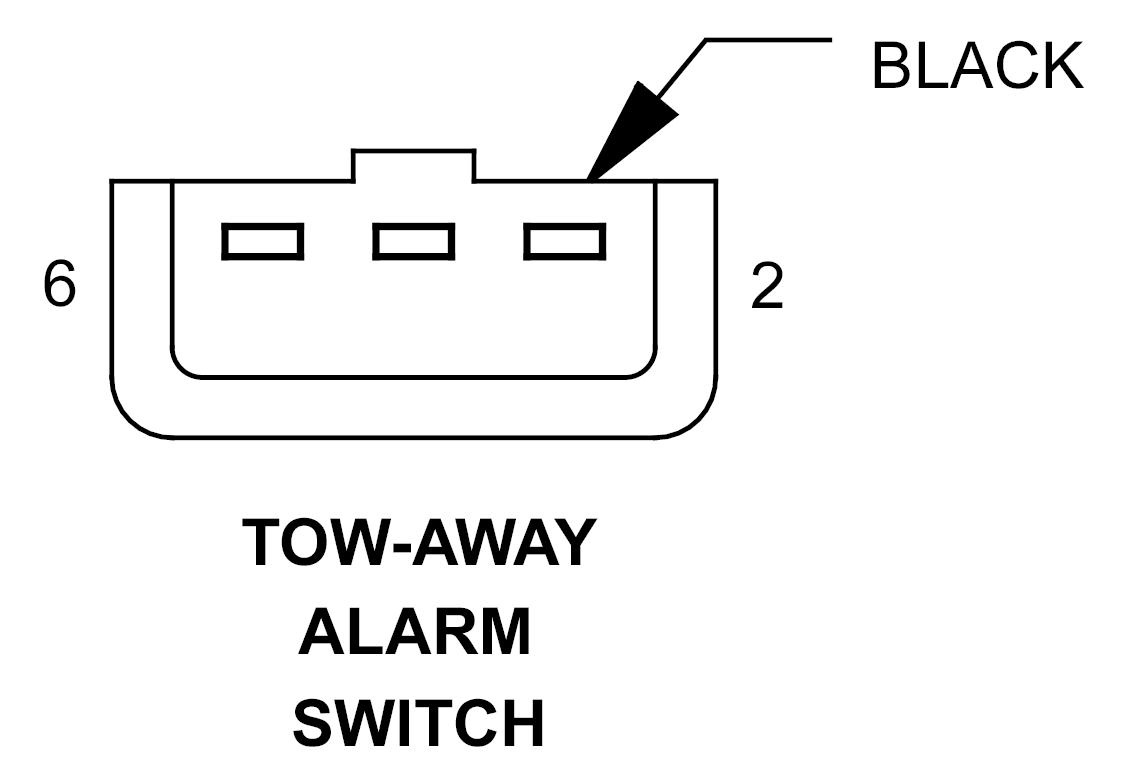

TOW-AWAY ALARM SWITCH - BLACK 3-WAY

GZH780247Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
2 22RD/DG TOW-AWAY ALARM SWITCH LED CONTROL
4 - -
6 20WT/DG TOW-AWAY ALARM SWITCH SENSE
