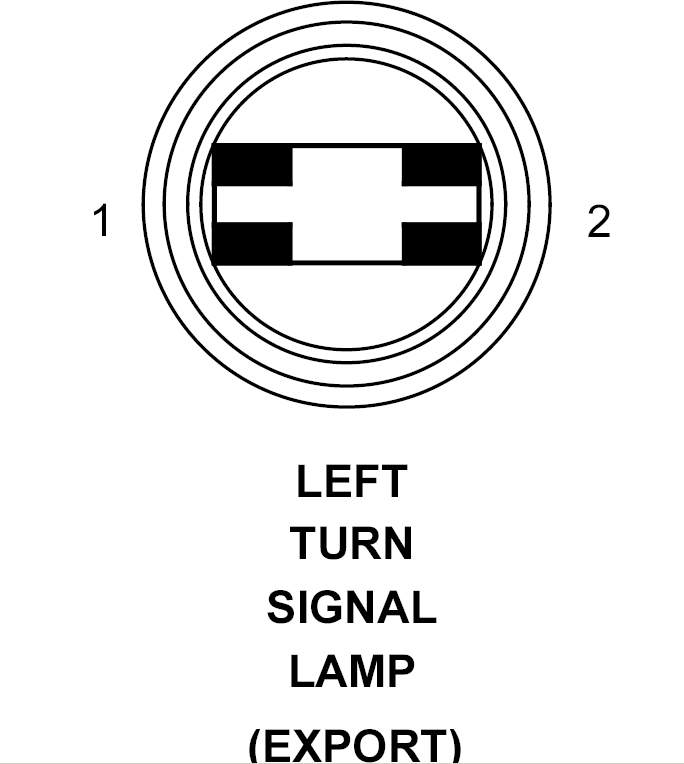

Left Turn Signal Lamp (Export) Connector End View
LEFT TURN SIGNAL LAMP - 2-WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18BR
GROUND
2
18BK/WT
LEFT TURN SIGNAL OUTPUT
Courtesy of CHRYSLER CORP.
