Left Park Lamp Connector End View

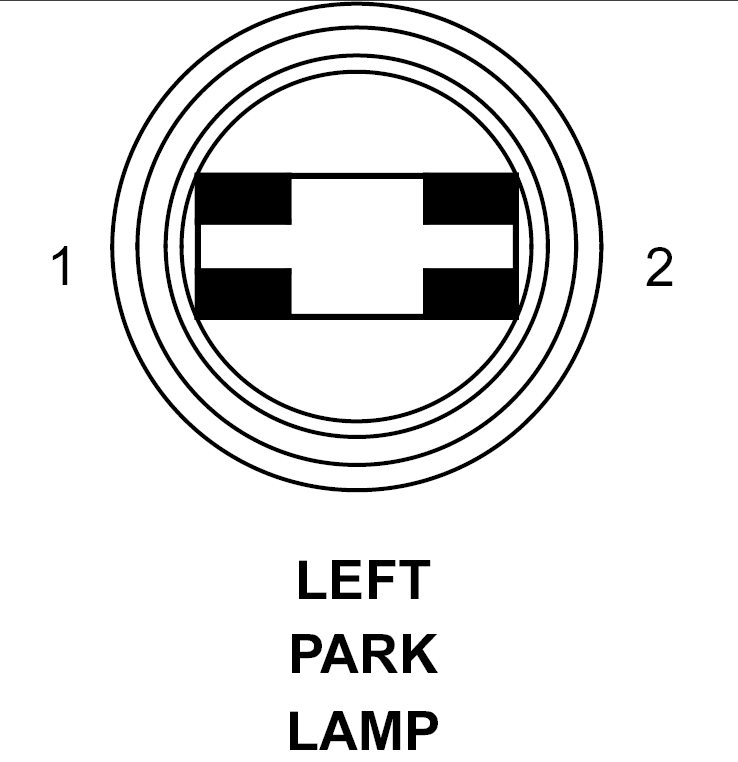

LEFT PARK LAMP - 2-WAY

GZH780151Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR GROUND
2 18DG/WT FUSED ILLUMINATION CONTROL MODULE OUTPUT (EXCEPT EXPORT)
2 18GY/BK FUSED ILLUMINATION CONTROL MODULE OUTPUT (EXPORT)
