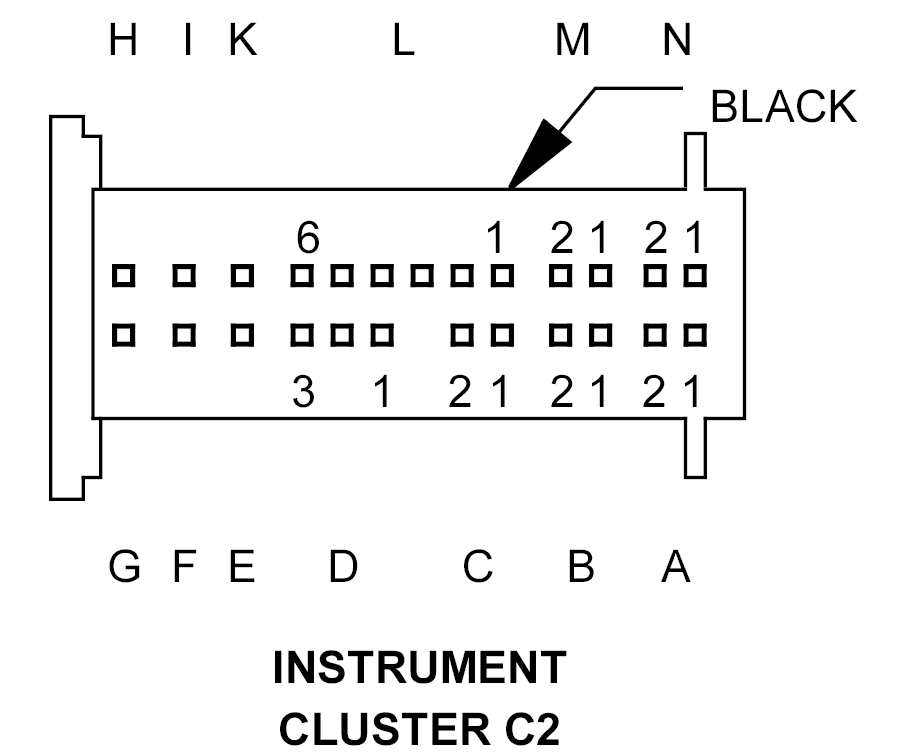

Instrument Cluster Connector End View (C2)
INSTRUMENT CLUSTER C2 - BLACK 25-WAY
| CAV | CIRCUIT | FUNCTION |
| 1A | - | - |
| 1B | - | - |
| 1C | 20PK/YL/DG | FUSED IGNITION SWITCH OUTPUT |
| 1D | - | - |
| 1E | - | - |
| 1F | 20GY/YL | LOW TIRE PRESSURE WARNING INDICATOR CONTROL |
| 1G | - | - |
| 1H | - | - |
| 1I | 20BR/DG | DRIVER SEAT BELT SWITCH SENSE |
| 1K | 20BK/BR | TELESCOPING STEERING SWITCH SENSE |
| 1L | 20BK/VT | INSTRUMENT CLUSTER WAKE UP SIGNAL |
| 1M | - | - |
| 1N | - | - |
| 2M | - | - |
| 2N | 20DG/VT | FUSED IGNITION SWITCH OUTPUT |
| 2D | - | - |
| 2C | 20PK | AIRBAG WARNING INDICATOR DRIVER |
| 2B | - | - |
| 2A | - | - |
| 2L | 22BR/GY | LEFT DOOR AJAR SWITCH SENSE (LHD) |
| 2L | 22BR/PK | RIGHT DOOR AJAR SWITCH SENSE (RHD) |
| 3L | - | - |
| 3D | - | - |
| 4L | 20BL/BK | FUEL LEVEL SENSOR SIGNAL |
| 5L | 20BR/GY | FUEL LEVEL SENSOR RETURN |
| 6L | - | - |
