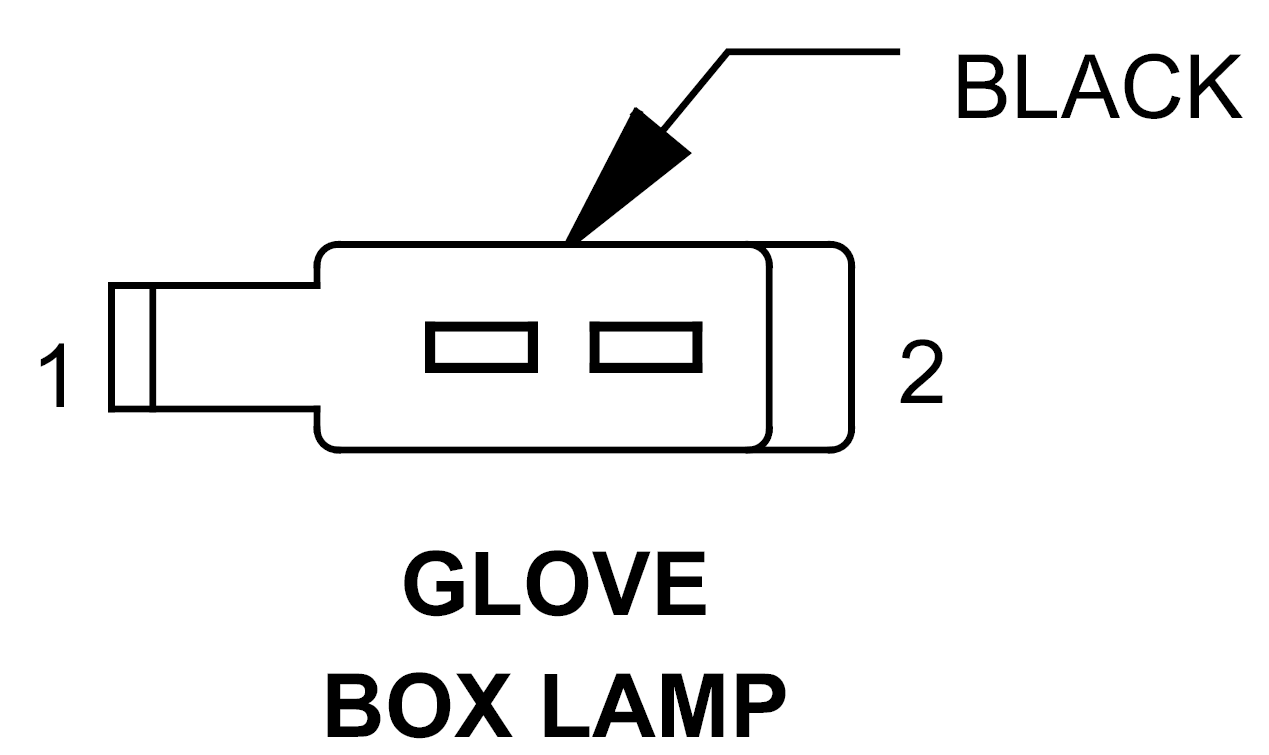

Glove Box Lamp Connector End View

GLOVE BOX LAMP - BLACK 2-WAY

GZH780120Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
1 20BR GROUND
2 16BK/BL FUSED B(+)
2 16BK/BL FUSED B(+)
