EGR Solenoid Connector End View

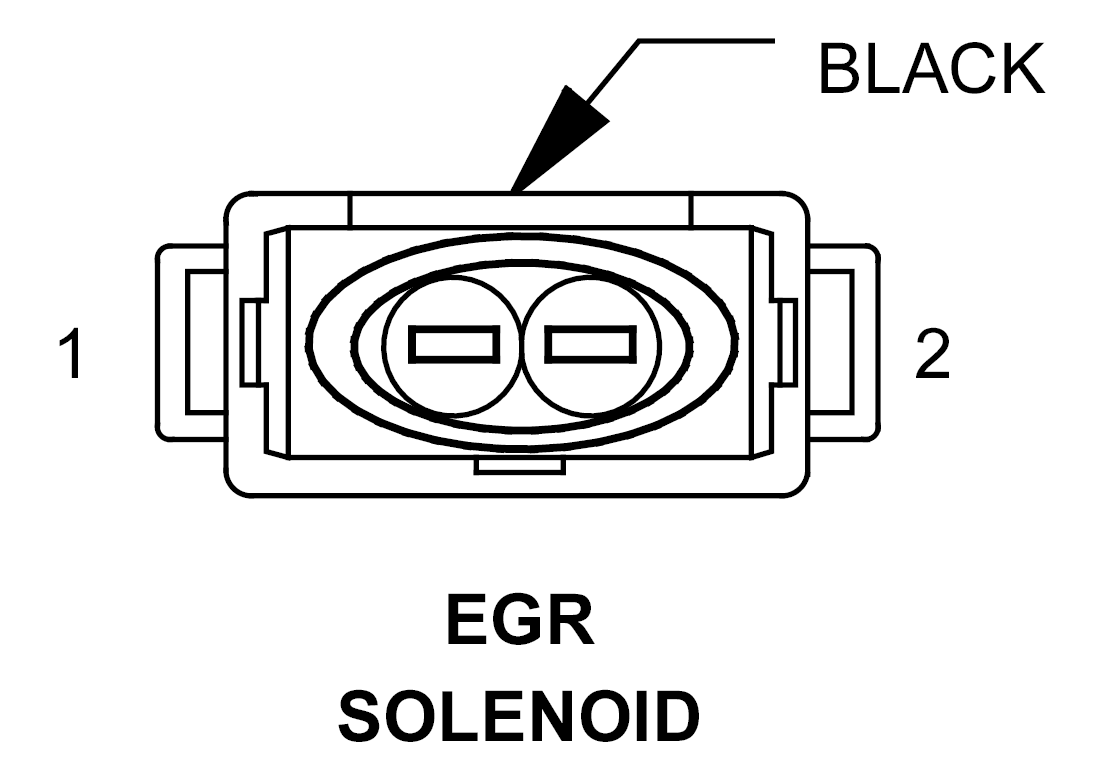

EGR SOLENOID - BLACK 2-WAY

GZH780103Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20GY/WT EGR SOLENOID CONTROL
2 20RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
